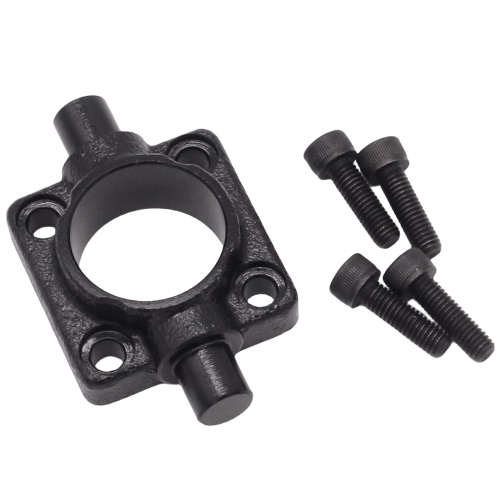

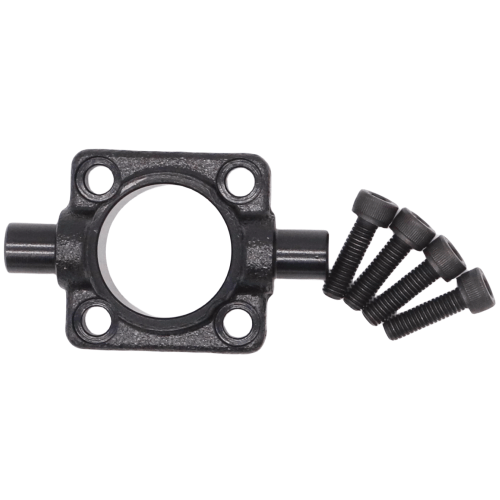

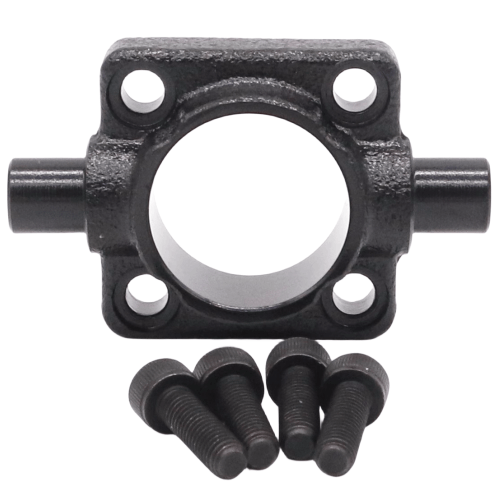

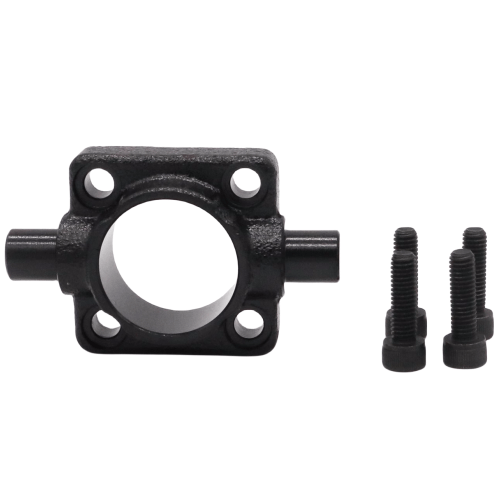

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI100FTC
AirTAC F-SI-FTC Series End Cover Trunnion Bracket Kit F-SI100FTC Technical Details
- Full model designation: F-SI100FTC
- Series: SI-FTC heavy-duty trunnion mount
- Material: Aluminum alloy ADC12 (anodized finish)
- Static load capacity: 2,200 N (radial), 1,800 N (axial)
- Mounting hole pattern: 4×M6 threaded holes (8mm depth)
- Center bore diameter: Φ25±0.02mm
- Temperature tolerance: -40℃ to 150℃
- Surface hardness: HV 120-140
- Corrosion resistance: 500hr salt spray test compliant
- Vibration resistance: 10-2000Hz, 15G acceleration
- Weight: 350g ±2%
- Dimensions: 120mm(L) × 50mm(W) × 40mm(H)
- Mounting flange thickness: 12mm
- Radial runout tolerance: ≤0.05mm
- IP rating: IP67 (with proper sealant)
Precision-machined trunnion bracket assembly designed for ISO cylinder series mounting, featuring dual-axis adjustability (±3° horizontal/vertical) and integrated shock absorption grooves. The hard-anodized surface treatment provides exceptional wear resistance against particulate abrasion in harsh environments. Includes pre-installed stainless steel bushings (SUS304) and 4×Class 12.9 mounting bolts with anti-vibration washers.
- Robotic material handling systems requiring multi-position pivot points
- High-cycle pneumatic press machines (＞1 million cycles/year)
- Cleanroom-compatible automation with NSF-certified lubricants
- Marine equipment installations needing saltwater corrosion resistance
- Vibration-intensive packaging lines with shock load requirements
Installation protocol:
Apply medium-strength thread locker (Loctite 243 recommended) on mounting bolts.
Torque specification: 8-10 N·m using calibrated wrench.
Perform concentricity alignment check after 24hrs of initial operation.
| Property | Property Value |
|---|---|
| sku | F-SI100FTC |
