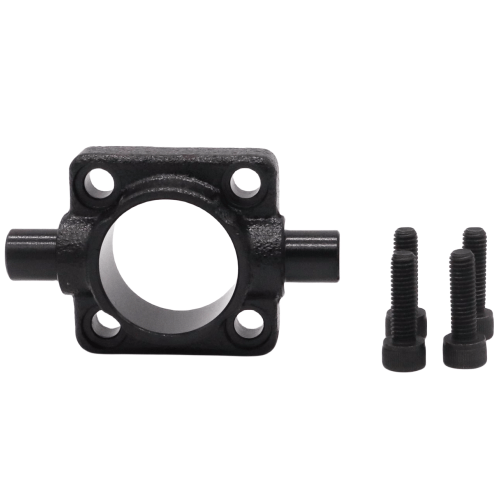

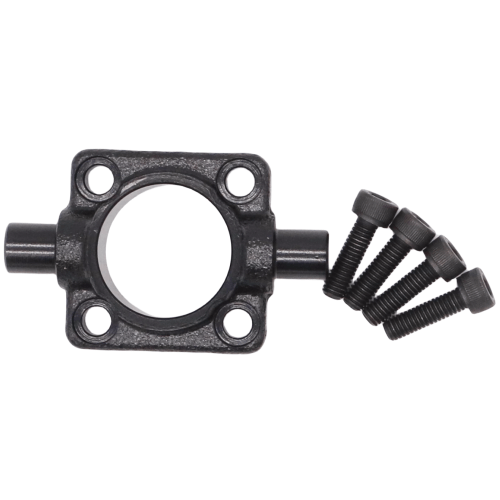

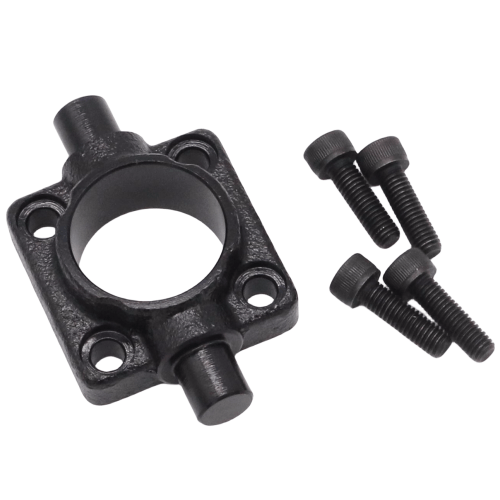

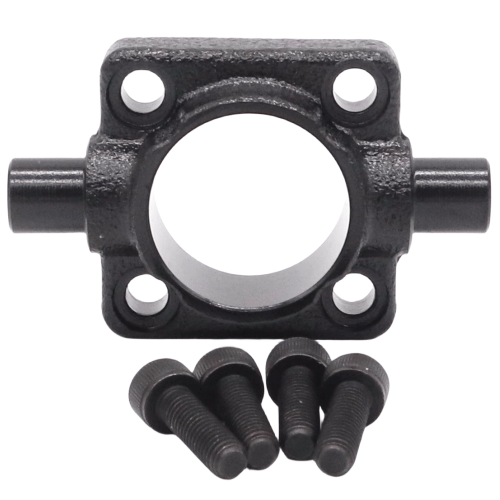

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI125FTC
AirTAC F-SI-FTC End Cover Trunnion Bracket Kit (F-SI125FTC) Technical Details
- Full model designation: F-SI125FTC
- Bracket type: Heavy-duty reinforced trunnion mount
- Compatible cylinder series: SI series Ø125mm bore
- Material: Anodized aluminum alloy (AL6061-T6)
- Surface treatment: Hard oxidation (25μm thickness)
- Mounting hole specifications: 2×Ø14mm through holes with M12×1.5 threaded inserts
- Static load capacity: 3,200N radial / 2,100N axial
- Dynamic load rating: 1,800N (at 0.5m/s)
- Operating temperature: -40℃ to 150℃
- Vibration resistance: 10-2000Hz, 15G acceleration
- Corrosion resistance: 500hr salt spray test passed
- Weight: 2.45kg ±2%
- Dimensions: 168mm(L) × 142mm(W) × 89mm(H)
- Package contents: Bracket body, 4×M12×1.5 flange nuts, 8×CR12MoV steel washers
Precision-machined trunnion bracket engineered for heavy-load cylinder stabilization in high-cycle applications. Features dual-axis load distribution and anti-vibration grooves, with laser-etched alignment markers for precise installation. Includes corrosion-resistant hardware kit for outdoor or humid environments.
- Automated welding robot base actuators
- Hydraulic press auxiliary positioning systems
- Conveyor belt tensioning mechanisms
- Off-road vehicle lift gate cylinders
- Food processing line rotary indexers
Mounting protocol:
Apply 25-30N·m torque to mounting bolts using cross-pattern tightening sequence.
Lubricate pivot points with ISO VG32 hydraulic fluid during assembly.
Perform torque check after 50 operating hours.
| Property | Property Value |
|---|---|
| sku | F-SI125FTC |
