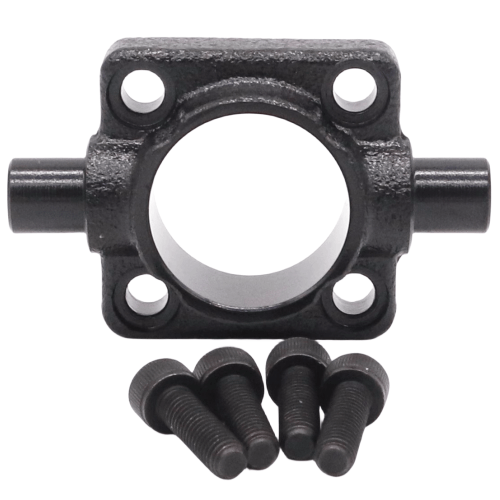

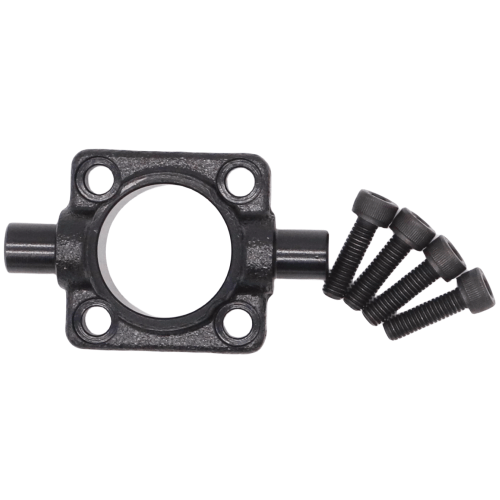

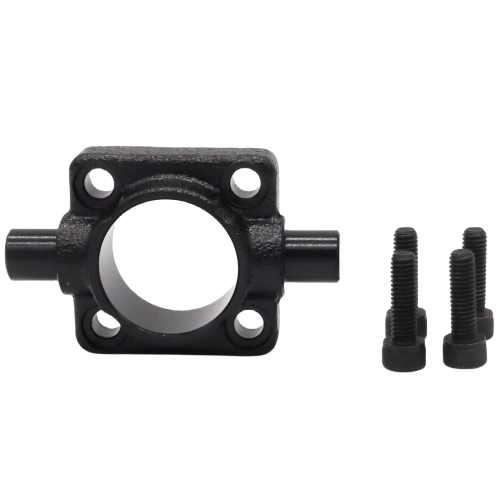

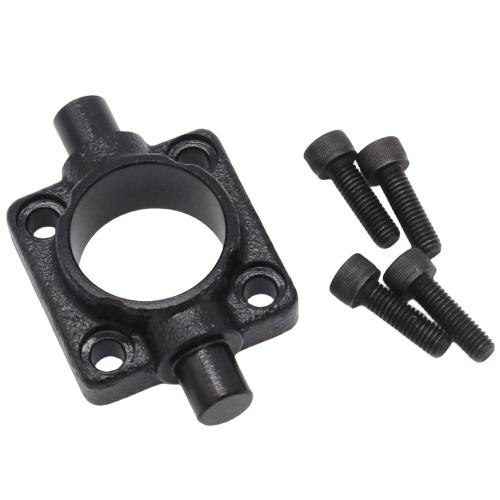

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI160FTC
AirTAC F-SI-FTC End Cover Trunnion Bracket Kit (F-SI160FTC) Specifications
- Model: F-SI160FTC
- Type: Complete trunnion bracket assembly with pre-mounted end cover
- Material: Aluminum alloy ADC12 (ISO 3522 compliant)
- Mounting type: Dual trunnion pivot with reinforced bearing surfaces
- Static load capacity: 3,200 N (radial), 2,100 N (axial)
- Dynamic load rating: 1,800 N (continuous operation)
- Compatible cylinder bore: Ø160mm series
- Temperature range: -20℃ to +80℃
- Surface treatment: Black anodized (12-15μm thickness)
- Mounting hole specifications: M10 threaded x 4 positions (8.8 grade bolts included)
- Bearing clearance: 0.05-0.12mm (factory pre-adjusted)
- Weight: 2.8kg ±3%
- Dimensions: 160mm(L) × 85mm(W) × 65mm(H)
- Mounting hole spacing: 140mm center-to-center (longitudinal)
- Corrosion resistance: 96hr salt spray test passed
Heavy-duty trunnion bracket kit designed for high-moment applications in pneumatic cylinder systems. Features precision-machined bearing surfaces with integrated lubrication grooves, ensuring smooth articulation under load. The pre-assembled kit includes vibration-resistant locknuts and alignment shims for simplified installation.
- Automated material handling systems with oscillating cylinder motions
- Packaging machinery with rotating clamp mechanisms
- Foundry equipment requiring heat-resistant mounting solutions
- High-cycle automation cells (up to 1.2 million cycles/year)
- Tilt-and-dump mechanisms in agricultural machinery
Installation note:
Apply medium-strength thread locker (Loctite 243 equivalent) on mounting bolts.
Torque specifications: 45-50 N·m for M10 bolts. Perform alignment verification
using dial indicator (max 0.2mm runout tolerance). Relubricate pivot points
every 2,000 operating hours using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | F-SI160FTC |
