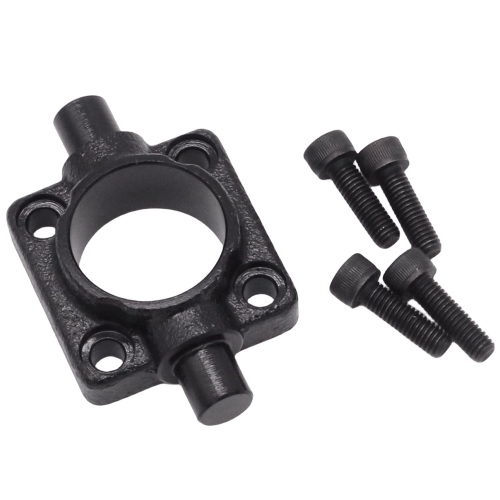

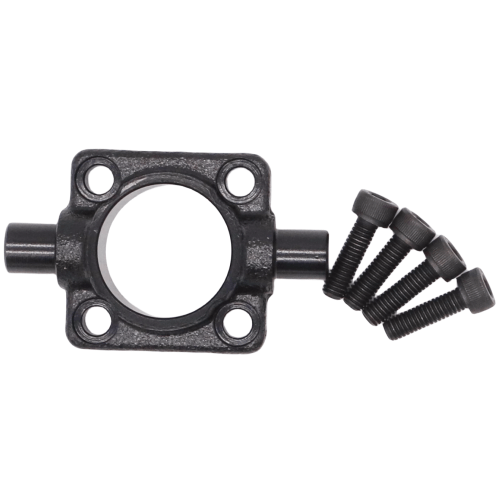

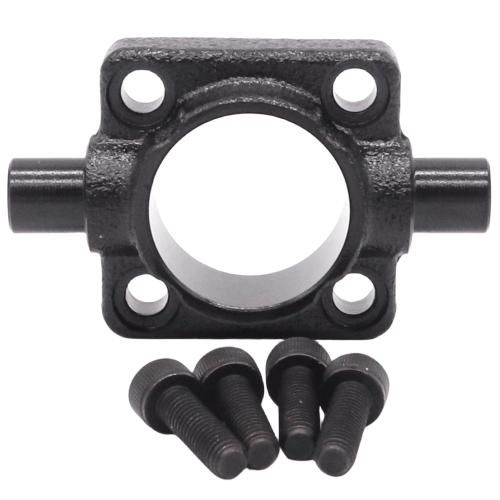

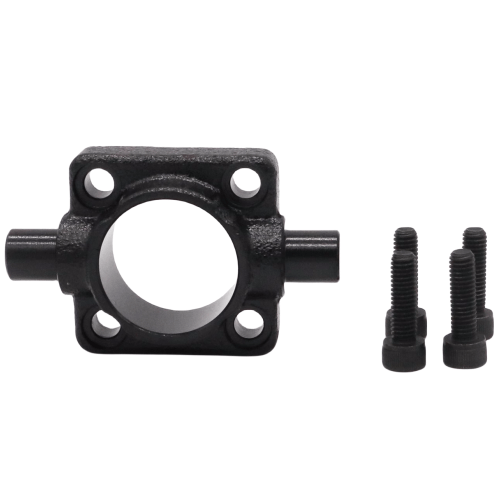

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI200FTC
AirTAC F-SI-FTC Series End Cover Trunnion Bracket Kit (F-SI200FTC) Specifications
- Model: F-SI200FTC
- Series: F-SI-FTC Standard Mounting Kit
- Material: Aluminum alloy (A6063-T5 base material)
- Installation Type: Dual trunnion side mounting
- Compatible Cylinder Bore: Ø200mm
- Surface Treatment: Hard anodized (25μm thickness)
- Load Capacity: Static 3,500N / Dynamic 1,800N
- Temperature Range: -20℃ to 100℃ (continuous operation)
- Mounting Torque: 12-15 N·m (M10 screws)
- Weight: 0.85kg ±3%
- Dimensions: 200mm(L) × 65mm(W) × 48mm(H)
- Hardware Included: 4x M10×1.5×25mm Hex Socket Head Cap Screws (Class 12.9)
- Vibration Resistance: 5-2000Hz, 5G max
- Corrosion Resistance: 96hrs salt spray test compliant
Heavy-duty trunnion mounting solution designed for high-moment applications in linear actuator systems. Features precision-machined alignment surfaces (±0.05mm tolerance) and four-point mounting stability. The thermal-conductive design prevents heat accumulation in continuous operation cycles.
- Industrial robotic arm pivot joints
- Automated assembly line positioning fixtures
- Material handling system transfer units
- High-cycle packaging machinery actuators
- Plastic injection molding machine ejectors
Installation Protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) on mounting screws.
Tighten diagonally in 3 stages (30% → 70% → 100% torque) to ensure even load distribution.
Avoid over-torque to prevent housing deformation.
