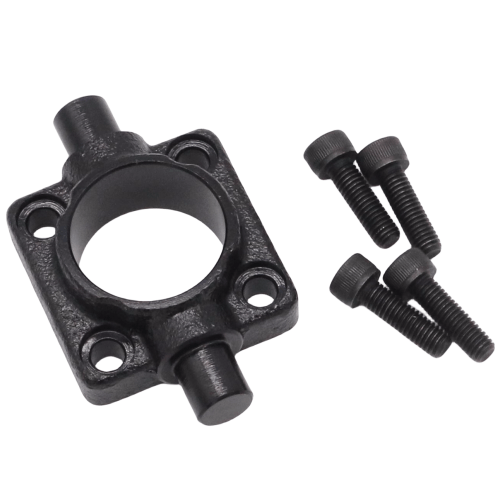

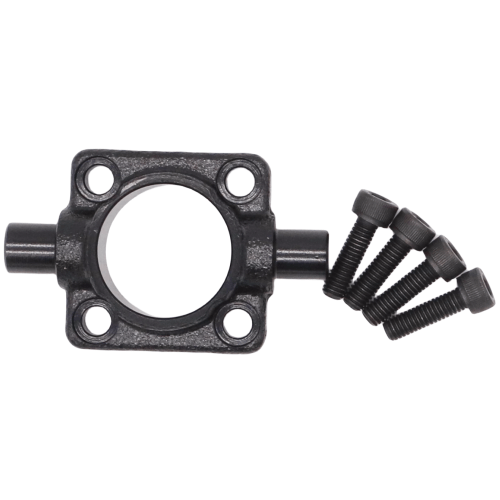

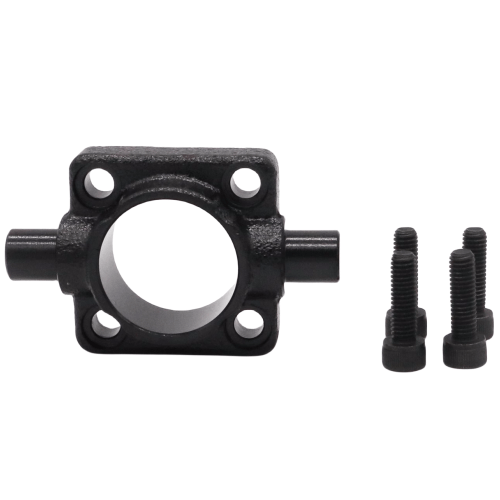

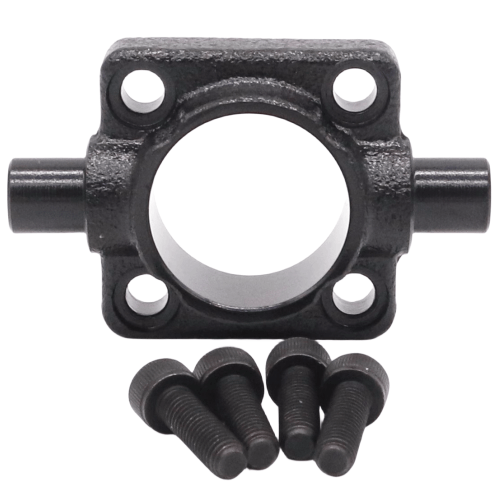

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI40FTC
AirTAC F-SI-FTC End Cover Trunnion Bracket Kit F-SI40FTC Specifications
- Model: F-SI40FTC
- Type: Complete trunnion mounting kit with end cover
- Material: Aluminum alloy (main body) + Steel (fasteners)
- Mounting hole spacing: 40±0.1mm (horizontal axis)
- Load capacity: Max 2,500N static load
- Surface treatment: Anodized (black) + Zinc-nickel plating
- Compatible cylinder series: SDA/SMA/SRA series Ø40mm bore
- Operating temperature: -20℃ to 80℃
- Weight: 385g ±5g
- Dimensions: 78mm(L) × 52mm(W) × 42mm(H)
- Mounting thread: M6×1.0 (4 holes)
- Vibration resistance: ≤15m/s² (ISO 10816-3)
Precision-engineered mounting solution for cylinder stabilization, featuring dual-axis adjustability (±2° horizontal tilt correction) through elongated mounting holes. Includes pre-assembled corrosion-resistant hardware and alignment shims for simplified installation. The integrated dust shield protects cylinder rods in particulate-heavy environments.
- Robotic arm joint articulation systems
- CNC machine tool clamping mechanisms
- Automated conveyor sorting arms
- Packaging machine vertical lift assemblies
- Plastic injection molding ejector units
Installation note:
Apply 20-25N·m torque to mounting bolts using cross-tightening sequence.
Use included 0.5mm shims when installing on surfaces with >Ra3.2 roughness.
