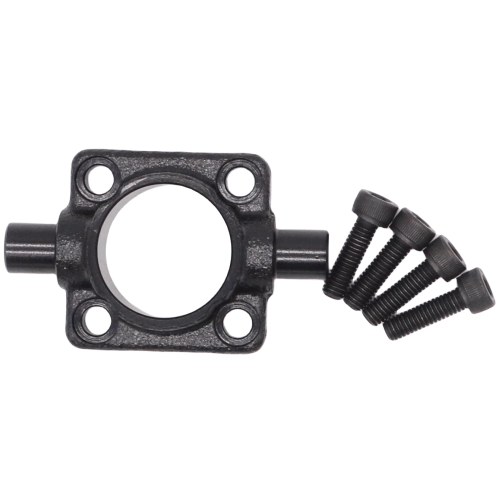

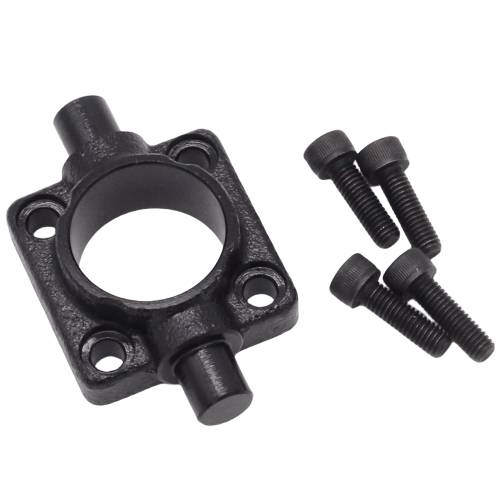

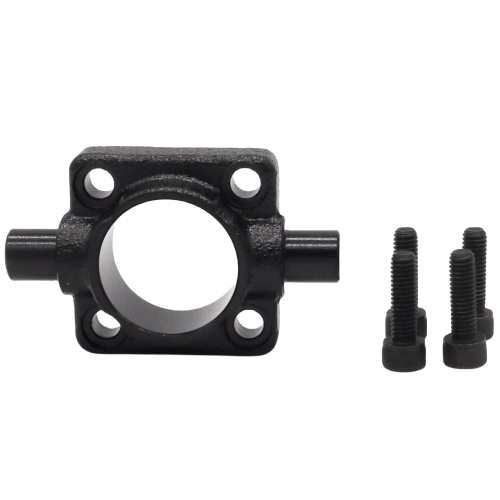

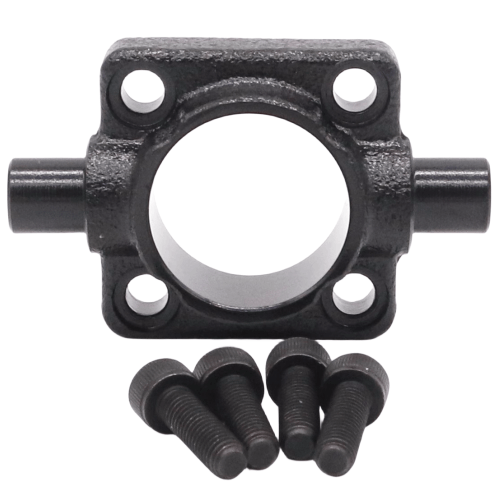

Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI50FTC
AirTAC F-SI-FTC End Cover Trunnion Bracket Kit F-SI50FTC Technical Details
- Model: F-SI50FTC (F-SI-FTC series)
- Type: Pre-assembled trunnion bracket kit with end cover
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized (18-22μm thickness)
- Mounting hole spacing: 50mm ±0.2mm (center-to-center)
- Thread specifications: M6×1.0 mounting threads (4 places)
- Max radial load capacity: 1,200N
- Max axial load capacity: 800N
- Weight: 385g ±10g
- Dimensions: 78mm(L) × 62mm(W) × 34mm(H)
- Operating temperature: -20℃ to 80℃
- Compatibility: Designed for SI series cylinders (Specifically SI50 bore size)
- Included components: Bracket body, mounting bolts (M6×12, QTY4), anti-vibration washers
Heavy-duty trunnion mounting solution featuring dual-axis adjustability (±2° horizontal/vertical) for precise cylinder alignment. The hardened steel pivot pins (HRC 45-50) and reinforced rib structure ensure vibration resistance in high-cycle applications. Includes pre-lubricated bushings for smooth angular adjustment.
- Robotic welding fixture positioning systems
- Packaging machine rotary actuators
- Automated conveyor diverters
- Press machine tooling guides
- Semiconductor handling equipment
Installation protocol:
Use torque-controlled wrench (recommended 5.5-6.5N·m for M6 bolts) and
periodically check pivot pin lubrication every 2,000 operating hours.
Avoid side impact during cylinder installation.
| Property | Property Value |
|---|---|
| sku | F-SI50FTC |
