Airtac F-SI-FTC End Cover Trunnion Bracket Assembly F-SI80FTC

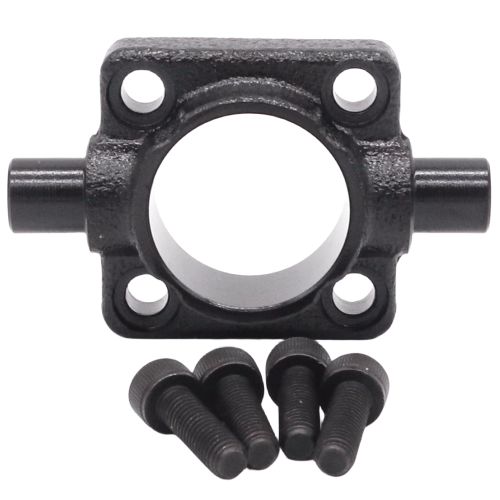

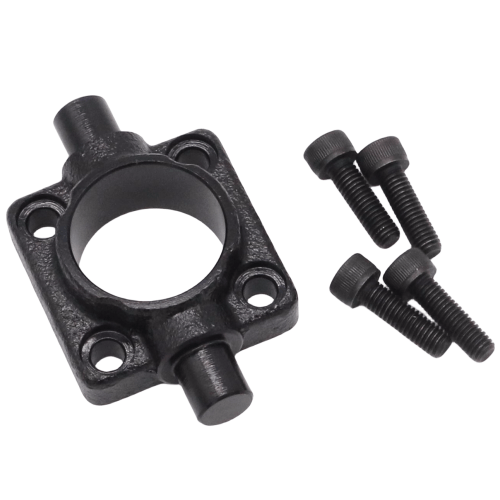

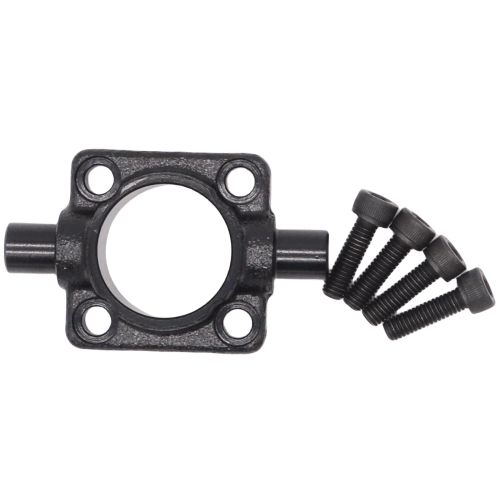

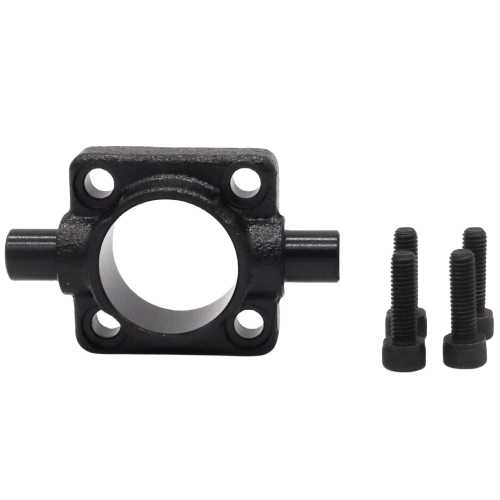

AirTAC F-SI-FTC Trunnion Bracket End Cover Kit F-SI80FTC Technical Details
- Full model designation: F-SI80FTC
- Material: Anodized aluminum alloy (AL6061-T6)
- Static load capacity: 1,200N radial / 800N axial
- Mounting type: Dual trunnion with through-hole design
- Compatible cylinder bore: Φ80mm
- Operating temperature: -20°C to +120°C
- Surface treatment: Hard anodizing (25-30μm thickness)
- Included hardware: 4×M8×20 hex socket screws (12.9 grade), 2×precision dowel pins
- Corrosion resistance: 500hr salt spray test compliant
- Weight: 0.68kg ±2%
- Dimensions: 112mm(L) × 84mm(W) × 38mm(H)
- Mounting hole spacing: 60mm center-to-center
- Surface roughness: Ra 0.8μm on mating surfaces
- Standards: ISO 15552, ISO 6432 compliant
Precision-engineered trunnion mount solution for Φ80mm pneumatic cylinders, featuring dual-axis load support with vibration dampening properties. The asymmetrical flange design enables space-efficient installation in confined areas while maintaining ISO mounting compatibility. Includes pre-aligned mounting hardware for reduced assembly time.
- Automated welding positioner stabilization
- Palletizing robot end-effector mounts
- Die-casting machine cylinder fixation
- Semiconductor handling equipment
- Food processing conveyor alignment systems
Installation protocol:
Apply 25-30N·m torque using calibrated tool during screw tightening.
Use alignment jig (PN: AL-80FTC) for multi-bracket installations.
Avoid direct contact with acidic coolants (pH <5).
| Property | Property Value |
|---|---|
| sku | F-SI80FTC |
