Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI200LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB

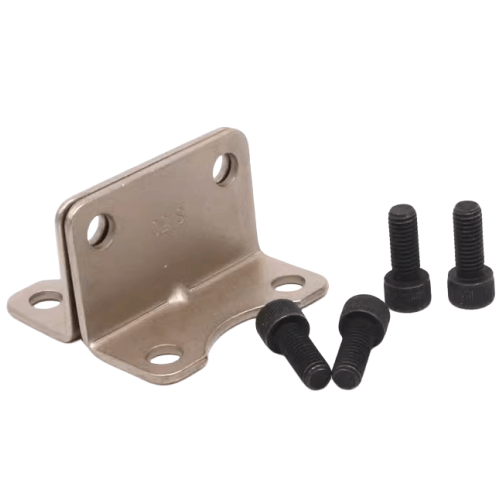

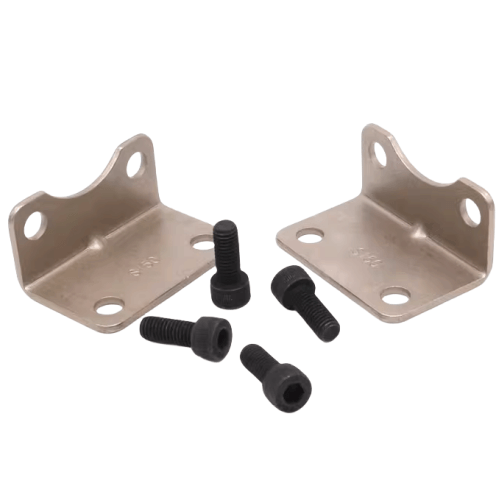

The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Axial Fixation Bracket Kit F-SI200LB Technical Details
- Model: F-SI200LB (Complete Kit)
- Type: Precision-machined axial alignment bracket assembly
- Material: Aluminum alloy AL6061-T6 with hard anodized finish
- Mounting Hole Pattern: 200mm × 200mm square configuration
- Shaft Compatibility: Ø20mm linear shafts (supports dual shaft fixation)
- Static Load Capacity: 2,500N radial / 1,800N axial
- Dynamic Load Rating: 1,200N radial @ 0.5m/s
- Weight: 3.2kg ±2% (including all mounting hardware)
- Dimensions: 240mm(L) × 220mm(W) × 45mm(H)
- Operating Temperature: -30℃ to 120℃ (dry environment)
- Surface Hardness: HV400-450
- Tolerance Class: ISO h7 for shaft bore
- Included Components: Bracket body, M8×25mm stainless steel cap screws (Qty 4), anti-vibration shims (0.1/0.2mm), installation template
Heavy-duty linear motion support system designed for precision machinery alignment. Features dual-bearing contact surfaces with oil-impregnated bronze bushings for reduced friction wear. The cross-drilled lubrication channels allow continuous maintenance without disassembly. Anodized coating provides corrosion resistance in harsh environments.
- Industrial robot arm joint stabilization
- CNC machine tool linear guide end supports
- Automated packaging line conveyor shafts
- Semiconductor wafer handling equipment
- 3D printer gantry axis reinforcement
Installation protocol:
Use torque wrench (12-15N·m) for even bolt tightening sequence.
Apply lithium-based grease to bushings pre-installation.
Perform laser alignment verification after 48hrs of initial operation.
| Property | Property Value |
|---|---|
| sku | F-SI200LB |
