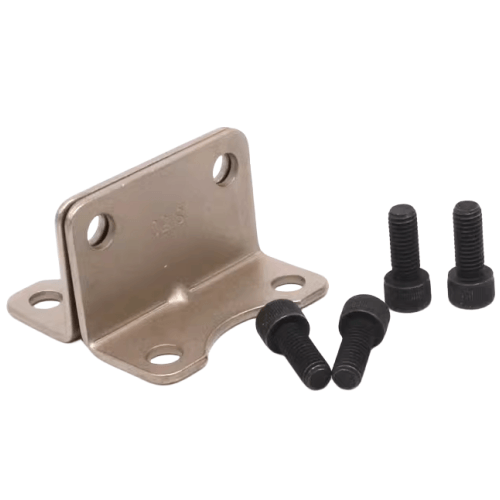

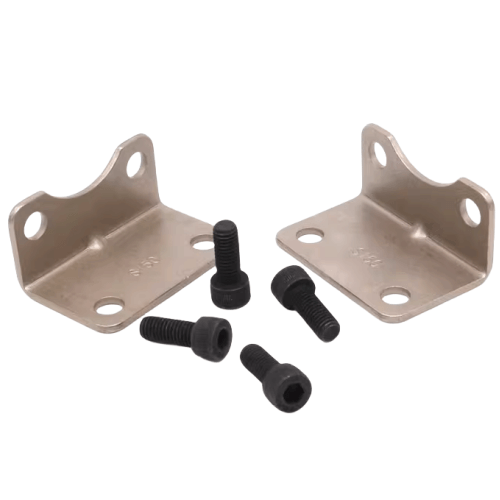

Airtac F-SI-LB Axial Fixing Bracket Assembly Kit F-SI32LB
Category: Cylinder Accessories | Brand: Airtac | Series: F-SI-LB
The Airtac F-SI-LB Axial Mounting Bracket Complete Kit is a precision-engineered cylinder accessory designed for rigid axial fixation of pneumatic cylinders in industrial automation systems. Featuring high-strength anodized aluminum alloy construction, this assembly ensures vibration resistance and corrosion protection in demanding environments. The kit includes pre-assembled components with standardized mounting interfaces, enabling seamless integration with F-SI series cylinders while maintaining strict coaxial alignment. Its compact design optimizes spatial efficiency in confined machinery layouts, and the modular structure simplifies maintenance operations. The product complies with ISO 6432 mounting specifications, making it ideal for applications requiring precise linear motion control in robotics, material handling, and automated production lines.
AirTAC F-SI-LB Series Axial Fix Mount Complete Kit (F-SI32LB)
- Model: F-SI32LB-32 (Standard Size)
- Compatible Cylinder Series: SDA/SI/SU Series Ø32mm
- Material: Aluminum Alloy 6063-T5
- Surface Treatment: Black Anodized
- Mounting Type: Axial Dual-Rod Side Fixation
- Bolt Specifications: M6×20mm (Class 8.8 Hex Socket Head)
- Torque Requirements: 5.5-6.5 N·m
- Lateral Load Capacity: ≤180 N
- Operating Temperature: -20℃ to 80℃
- Vibration Resistance: ≤10-55Hz (1.5mm amplitude)
- Weight: 0.38kg ±2%
- Dimensions: 72mm(L) × 42mm(W) × 32mm(H)
- Included Components: Mounting Bracket ×1, Lock Nuts ×2, Shim Washers ×4, Installation Manual
Precision-engineered axial stabilization solution for linear motion systems, featuring anti-rotation design with dual hardened guide rods. The diamond-knurled contact surface enhances grip while preventing cylinder slippage during high-cycle operations. Includes pre-lubricated bearings for smooth alignment adjustment (±1.5° compensation).
- Robotic arm joint stabilization in automated assembly lines
- Vertical Z-axis fixation for CNC tool changers
- Vibration damping in high-speed packaging machinery
- Precision alignment of optical inspection systems
- Conveyor system roller shaft stabilization
Installation Protocol:
Apply 20-25N preload force during torque application. Use 0.05mm feeler gauge
to verify parallel alignment between cylinder and mounting surface. Re-torque
after 50 operational cycles.
| Property | Property Value |
|---|---|
| sku | F-SI32LB |
