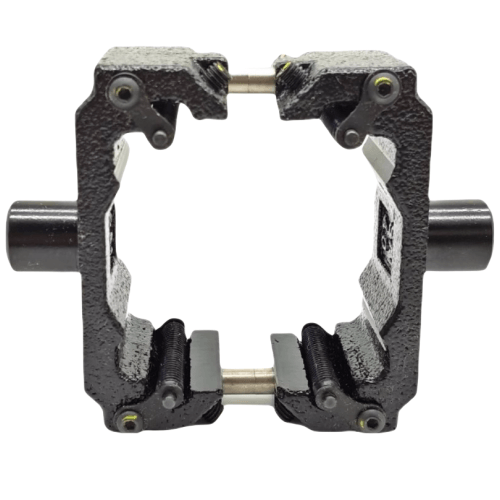

Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI100TC
AirTAC F-SI-TC Series Pivot Bracket Kit F-SI100TC Technical Specifications
- Model: F-SI100TC (Complete Kit)
- Type: Intermediate trunnion mounting bracket
- Material: Aluminum alloy ADC12 with black anodized finish
- Load capacity: Max 100kg dynamic / 200kg static
- Bore compatibility: Designed for Ø32-100mm cylinders
- Mounting hole spacing: 40±0.2mm (horizontal) × 60±0.3mm (vertical)
- Fastener specs: Includes M8×1.25 flange bolts (Class 8.8) and anti-vibration washers
- Surface hardness: HV 400-450
- Temperature range: -20℃ to 120℃ (continuous operation)
- Weight: 218g ±5g (including hardware)
- Dimensions: 72mm(L) × 54mm(W) × 28mm(H)
- Corrosion resistance: 500hr salt spray test passed
- Cylinder compatibility: MAL/MA/SC/SD series standard cylinders
Precision-machined pivot bracket featuring dual-axis adjustability (±2° compensation) for precise cylinder alignment. The hardened contact surfaces reduce wear while the integrated lubrication grooves maintain smooth rotation. Includes pre-installed PTFE-coated bushings for reduced friction coefficient (μ≤0.15).
- Multi-axis robotic arm articulation points
- Conveyor system diverter mechanisms
- Packaging machine rotary seal heads
- Automated welding fixture positioning
- Hydraulic-to-pneumatic transition mounts
Installation protocol:
Apply 2-3Nm torque during bolt tightening using cross-pattern sequence.
Lubricate pivot points with ISO VG32-grade oil before operation.
Verify 0.05-0.1mm clearance between bracket and cylinder flange.
| Property | Property Value |
|---|---|
| sku | F-SI100TC |
