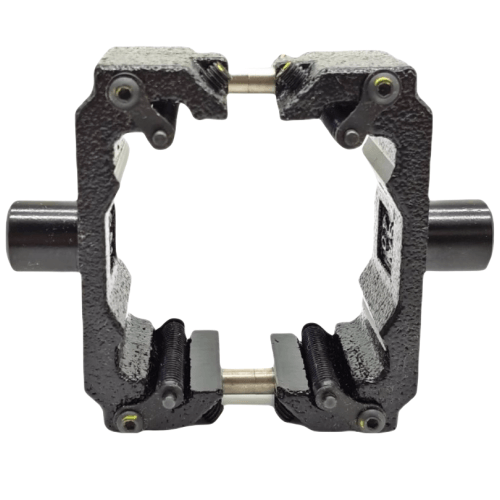

Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI125TC
AirTAC F-SI-TC Series Trunnion Bracket Kit F-SI125TC Technical Details
- Full model designation: F-SI125TC (Complete assembly kit)
- Material: Aluminum alloy ADC12 with non-conductive surface treatment
- Trunnion type: Dual-axis symmetrical support structure
- Bore compatibility: Designed for ISO 125mm cylinder series
- Mounting hole specifications: M6×1.0 threaded (4× mounting points)
- Load capacity:
- Dynamic load: 20kg (cyclic operation)
- Static load: 50kg (stationary applications)
- Installation orientation: Horizontal or vertical mounting configurations
- Operating temperature: -20℃ to +80℃ continuous operation
- Surface finish: Hard anodized coating (20μm thickness)
- Corrosion resistance: 500hr salt spray test compliant
- Included components:
- 4× M6×25mm hex socket cap screws (Class 12.9)
- 4× Spring washers (SUS304)
- 8× Precision shim plates (0.5mm thickness)
- 2× Alignment pins (Ø5×10mm)
- Weight: 0.45kg ±2% (complete kit)
- Dimensions: 125mm(L) × 40mm(W) × 25mm(H)
Heavy-duty trunnion mounting kit engineered for precise cylinder stabilization in high-vibration environments. Features anti-galling aluminum construction with wear-compensation shims for long-term positional accuracy. The asymmetric load distribution design prevents axis deflection during reciprocating motion cycles.
- Robotic welding arm cylinder support systems
- High-cycle packaging machine actuator mounting
- Plastic injection molding machine ejector mechanisms
- Automated conveyor sorting arm pivots
- CNC tool changer cylinder alignment
Installation protocol:
Apply 2.5-3.0Nm torque during screw tightening using cross-pattern sequence.
Shim packs must be installed between bracket and machine frame for thermal
expansion compensation. Perform alignment verification with dial indicator
(max 0.05mm runout tolerance).
| Property | Property Value |
|---|---|
| sku | F-SI125TC |
