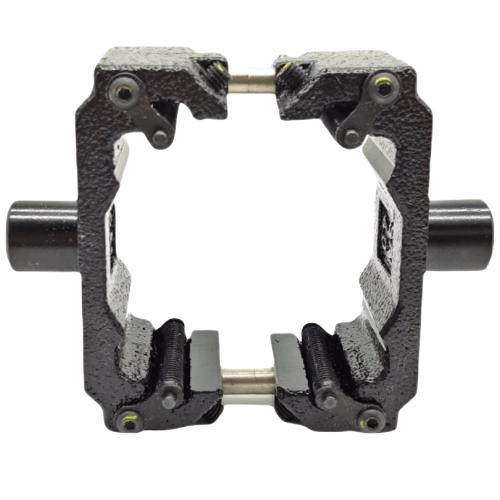

Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI160TC
AirTAC F-SI-TC Series Pivot Bracket Kit F-SI160TC Technical Specifications
- Model: F-SI160TC (Complete Assembly Kit)
- Bracket Type: Center pivot mount with twin support arms
- Material: Cold-forged carbon steel (SCM435 equivalent)
- Surface Treatment: Black oxide coating + anti-rust oil (8-12μm thickness)
- Bore Compatibility: Designed for φ160mm cylinders
- Max Load Capacity: 2,500N static / 1,800N dynamic
- Mounting Bolt Spec: M12×1.75 grade 10.9 hex bolts included (Qty 4)
- Bearing Type: Double-sealed ball bearing (6204ZZ-C3)
- Rotation Angle: ±90° continuous rotation capability
- Operating Temp Range: -30℃ to 120℃ (lubricated condition)
- Weight: 3.85kg ±2% (including all hardware)
- Dimensions: 168mm(L) × 142mm(W) × 58mm(H)
- Torque Spec: 88-92 N·m tightening torque recommended
- Vibration Resistance: 5-2000Hz, 15m/s² max
Heavy-duty pivot bracket assembly featuring precision-ground mounting surfaces and industrial-grade corrosion protection. The dual-arm design distributes torsional stresses evenly across both support points, making it ideal for high-moment applications. Includes pre-lubricated bearings and vibration-resistant locking washers.
- Rotary clamp mechanisms in automotive welding jigs
- Oscillating conveyor drives in food processing lines
- Parallel gripper mounting for robotic material handling
- Rotary actuator support in packaging machinery
- Positioner base for CNC machine tool accessories
Installation Protocol:
Apply 30-40 cSt viscosity lithium grease to bearing races before assembly.
Use torque wrench in crisscross pattern for even flange pressure.
Re-torque after 50 operating cycles.
| Property | Property Value |
|---|---|
| sku | F-SI160TC |
