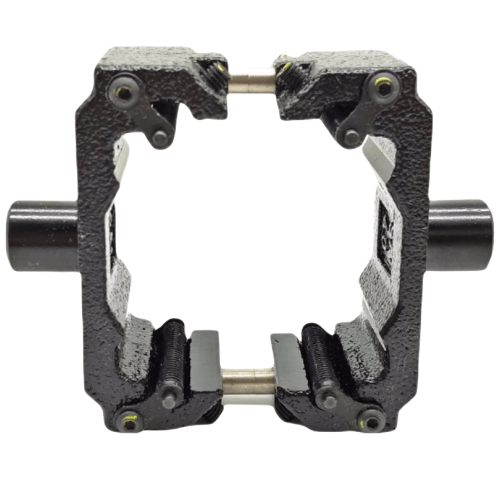

Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI200TC
AirTAC F-SI-TC Series Middle Trunnion Bracket Kit F-SI200TC Specifications
- Model: F-SI200TC
- Type: Universal middle trunnion mounting bracket kit
- Material: Aluminum alloy ADC12 (anodized surface)
- Compatible cylinder series: MAL/MAL-S/MAL-M/MAL-L
- Mounting style: Center trunnion with dual pivot points
- Bolt specifications: M10×1.5 mounting thread
- Max dynamic load: 1,200N (axial), 800N (radial)
- Max static load: 2,500N (axial), 1,500N (radial)
- Surface hardness: HV 400±50
- Temperature range: -20℃ to 80℃
- Weight: 0.82kg ±3%
- Dimensions: 200mm(L) × 40mm(W) × 25mm(H)
- Included hardware: 2× Trunnion shafts, 4× Lock nuts, 2× Anti-vibration washers
Precision-machined trunnion bracket designed for stable cylinder mounting in high-moment applications. Features dual-bearing support structure with hardened contact surfaces to prevent oval deformation. Includes pre-lubricated bushings for smooth articulation and anti-corrosion treatment for harsh environments.
- Multi-axis robotic arm joints
- Heavy-duty material handling systems
- Packaging machine rotary actuators
- Automated welding equipment
- Press machine cylinder stabilization
Installation guidelines:
Align bracket centerline within ±0.2mm of cylinder axis. Torque lock nuts to 25-30N·m using cross-tightening pattern. Apply thread-locking compound to non-lubricated fasteners. Perform load test at 50% capacity before full operation.
| Property | Property Value |
|---|---|
| sku | F-SI200TC |
