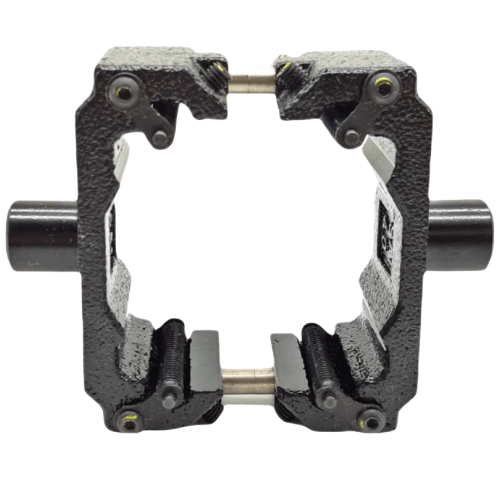

Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI32TC
AirTAC F-SI-TC Center Pivot Bracket Kit F-SI32TC Technical Details
- Full Model: F-SI32TC
- Series: SI Micro Cylinder Accessories
- Material: Aluminum alloy (ADC12)
- Surface treatment: Anodized (natural color)
- Compatible cylinder sizes: SI 32 series
- Mounting type: Dual through-hole side mounting
- Bore spacing: 30±0.1mm
- Axial load capacity: 120N max
- Radial load capacity: 80N max
- Operating temperature: -20°C to 100°C
- Corrosion resistance: C5 level (ISO 9227)
- Mounting screw specification: M6x1.0 pitch (included)
- Torque specification: 3.5N·m max
- Weight: 250g ±5%
- Dimensions: 100mm(L) × 32mm(W) × 42mm(H)
Precision-machined pivot bracket kit designed for SI series compact cylinders, featuring dual-axis alignment correction and anti-vibration design. Includes pre-installed wear-resistant brass bushings and stainless steel fasteners. The elliptical mounting holes (±0.5mm adjustment range) enable fine position calibration during installation.
- Robotic arm joint articulation points
- Conveyor system diverter mechanisms
- Semiconductor handling equipment
- 90° rotating clamp assemblies
- Packaging machine gripper rotation units
Mounting guidance:
Apply thread-locking compound to M6 screws before assembly.
Use 0.02mm feeler gauge to verify parallel alignment between
bracket and cylinder mounting surface. Re-torque after 50
operational cycles.
| Property | Property Value |
|---|---|
| sku | F-SI32TC |
