Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI40TC
$25.55
Regular price
$33.05
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI40TC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: Airtac
Series: F-SI-TC Center Trunnion Bracket Complete Assembly

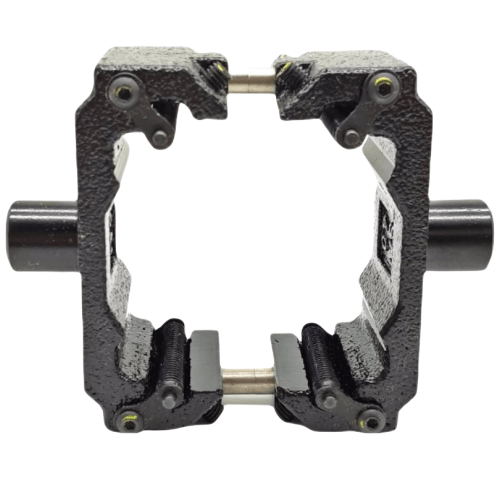

The F-SI-TC Center Trunnion Mounting Bracket is a precision-engineered cylinder mounting solution designed for mid-stroke load support in pneumatic systems. This pre-assembled kit features a robust trunnion-style bracket with integrated ISO-standard mounting interfaces, ensuring optimal force distribution and angular compensation during cylinder operation. The hardened pivot pins and reinforced bracket structure provide exceptional torsional rigidity for heavy-duty applications. Compatible with standard ISO cylinder profiles, this accessory simplifies installation while maintaining alignment integrity across extended stroke lengths. Includes corrosion-resistant mounting hardware and self-aligning bushings for reduced wear in dynamic applications.
Installation protocol:
Apply 25-30N·m torque during screw tightening using cross-pattern sequence.
Use alignment jig (PN: AT-40TC-JIG) for multi-bracket installations.
Lubricate sliding surfaces with MIL-PRF-81322 grease quarterly.
AirTAC F-SI-TC Series Intermediate Trunnion Bracket Kit F-SI40TC Specifications
- Model: F-SI40TC (Complete Kit)
- Type: Heavy-duty trunnion mounting bracket
- Material: Aluminum alloy ADC12 (anodized finish)
- Max Load Capacity: 180 kg (static)/90 kg (dynamic)
- Mounting Hole Pattern: ISO 15552 standard compliant
- Bore Size Compatibility: Φ32mm-Φ40mm cylinders
- Installation Screw Size: M6×1.0 (4 places)
- Surface Hardness: HV 120±5
- Operating Temperature: -40℃ to 120℃
- Vibration Resistance: ≤50 m/s² (10-150Hz)
- Weight: 850±10g
- Dimensions: 142mm(L) × 48mm(W) × 62mm(H)
- Surface Treatment: Black electrophoretic coating
- Included Components: Bracket body, M6×25 hex socket screws (4pcs), anti-vibration washers
Precision-engineered trunnion bracket designed for robust linear actuator support in high-cycle applications. Features dual-force dispersion channels and hardened contact surfaces to prevent axis misalignment. Includes corrosion-resistant hardware for industrial environments.
Typical Applications:
- Multi-axis robotic arm joint reinforcement
- High-speed pick-and-place unit mounting
- Pneumatic press vertical guidance systems
- Automated conveyor belt tensioning mechanisms
- Packaging machine cylinder stabilization
Installation protocol:
Apply 25-30N·m torque during screw tightening using cross-pattern sequence.
Use alignment jig (PN: AT-40TC-JIG) for multi-bracket installations.
Lubricate sliding surfaces with MIL-PRF-81322 grease quarterly.
WARNING:
Not compatible with side-impact loads exceeding 50N.
Requires annual bearing surface inspection in continuous operation environments.
