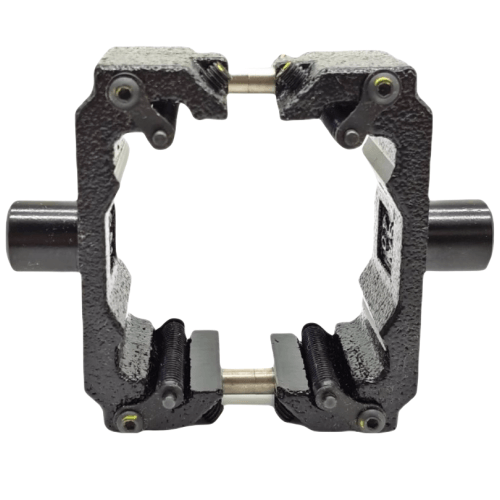

Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI50TC
AirTAC F-SI-TC Series Center Trunnion Bracket Kit F-SI50TC Technical Details
- Model: F-SI50TC (Complete Kit)
- Type: Reinforced center trunnion mounting bracket
- Material: Aluminum alloy ADC12 with black anodized finish
- Static Load Capacity: ≤450 kg
- Dynamic Load Capacity: ≤180 kg (at 0.5MPa)
- Mounting Hole Diameter: Ø12H7 (+0.018/0 mm)
- Bolt Spacing: 50±0.2mm (horizontal) × 40±0.2mm (vertical)
- Compatible Cylinder Series: MYTB/MYTC 50mm bore size
- Surface Hardness: HV 120±15
- Operating Temperature: -20℃ to +80℃
- Weight: 820g ±2% (including all mounting hardware)
- Dimensions: 50mm(L) × 40mm(W) × 25mm(H)
- Included Components: Bracket body, M8×20 hex socket screws (4pcs), anti-vibration washers (4pcs)
Precision-machined trunnion bracket designed for heavy-duty cylinder mounting in high-moment applications. Features CNC-milled alignment grooves and stress-relief contours that prevent axis deviation during lateral loading. The hardened contact surfaces (HRC 45-50) ensure stable positioning under vibration conditions.
- Robotic welding arm pivot points
- Vertical press machine guide mechanisms
- Automated conveyor sorting systems
- Packaging machine rotary actuators
- CNC tool changer positioning units
Installation protocol:
Use torque-controlled wrench (5-6Nm) for M8 fasteners. Apply thread-locking compound
(medium strength) on clean, oil-free threads. Verify perpendicularity with 0.02mm/m
precision level during assembly. Re-torque after 50 operational hours.
| Property | Property Value |
|---|---|
| sku | F-SI50TC |
