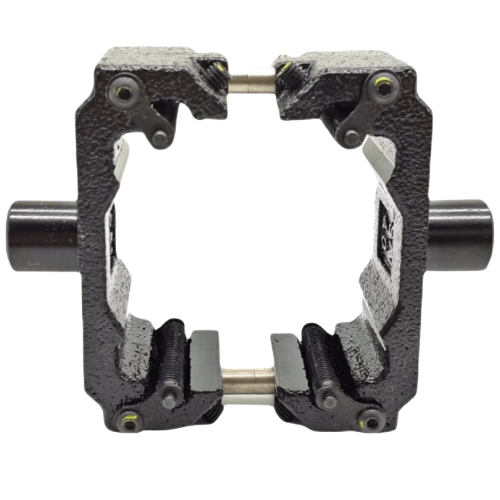

Airtac F-SI-TC Middle Trunnion Bracket Assembly Kit F-SI80TC
$41.84
Regular price
$49.34
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI80TC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: Airtac
Series: F-SI-TC Center Trunnion Bracket Complete Assembly
The F-SI-TC Center Trunnion Mounting Bracket is a precision-engineered cylinder mounting solution designed for mid-stroke load support in pneumatic systems. This pre-assembled kit features a robust trunnion-style bracket with integrated ISO-standard mounting interfaces, ensuring optimal force distribution and angular compensation during cylinder operation. The hardened pivot pins and reinforced bracket structure provide exceptional torsional rigidity for heavy-duty applications. Compatible with standard ISO cylinder profiles, this accessory simplifies installation while maintaining alignment integrity across extended stroke lengths. Includes corrosion-resistant mounting hardware and self-aligning bushings for reduced wear in dynamic applications.
Installation protocol:
Apply 15-20N·m torque using calibrated tool during assembly.
Use alignment jig (PN: AJ-80TC) for multi-bracket installations.
Lubricate contact surfaces with molybdenum disulfide grease when
operating above 80℃.
AirTAC F-SI-TC Series Intermediate Trunnion Bracket Kit F-SI80TC Specifications
- Model: F-SI80TC
- Type: Universal trunnion mounting bracket kit
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (black)
- Max static load capacity: 1,200N (axial), 800N (radial)
- Mounting hole spacing: 80±0.2mm (standard cylinder interfaces)
- Bolt specifications: M8×1.25 mounting threads (4 places)
- Temperature resistance: -20℃ to 150℃
- Corrosion resistance: 500hr salt spray test compliant
- Weight: 650g ±3%
- Dimensions: 80mm(L) × 50mm(W) × 25mm(H)
- Compatibility: Designed for ø32-ø100mm cylinder series
- Included components: Bracket body, M8×20 hex socket screws (4pcs), anti-vibration washers
Heavy-duty precision bracket featuring dual-axis alignment adjustment (±2°). Machined with CNC-controlled tolerance (IT7 grade) for vibration damping in high-cycle applications. Anodized surface prevents galvanic corrosion when used with stainless steel components.
Typical Applications:
- Robotic arm end-effector mounting systems
- Multi-axis pneumatic cylinder configurations
- Packaging machine rotary index table supports
- Automated welding fixture positioning units
- Semiconductor handling equipment stabilizers
Installation protocol:
Apply 15-20N·m torque using calibrated tool during assembly.
Use alignment jig (PN: AJ-80TC) for multi-bracket installations.
Lubricate contact surfaces with molybdenum disulfide grease when
operating above 80℃.
| Property | Property Value |
|---|---|
| sku | F-SI80TC |
