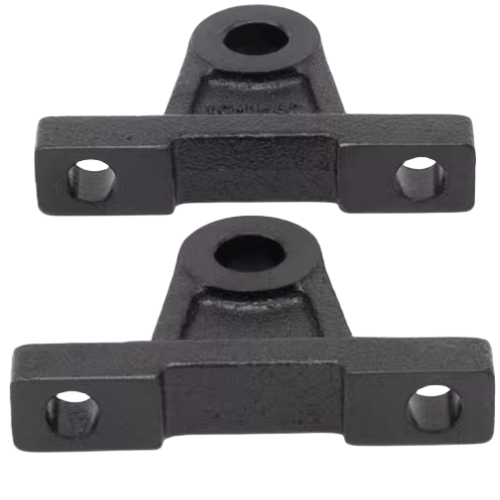

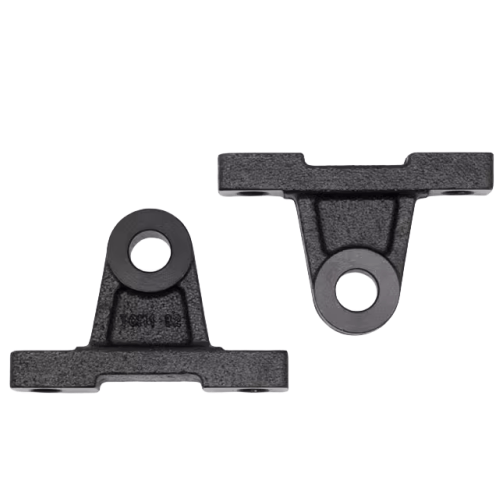

Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI125TCM2
AirTAC F-SI-TCM Trunnion Bracket Kit F-SI125TCM2 Technical Details
- Model: F-SI125TCM2
- Type: Pre-assembled trunnion bracket kit
- Compatible cylinder series: SI-Φ125 (specifically designed for SI125 cylinders)
- Material: Aluminum alloy ADC12 (base) + SUS304 stainless steel (mounting hardware)
- Static load capacity: 1,850 kg·m radial moment
- Dynamic load capacity: 920 kg·m radial moment
- Mounting hole pattern: 4×M10 threaded holes (10mm depth) on 150mm PCD
- Surface treatment: Black anodized (base) / Passivation (hardware)
- Operating temperature: -20℃ to 80℃ (continuous) / Peak 120℃ (≤1hr)
- Weight: 3.8 kg (complete kit)
- Dimensions: 178mm(L) × 165mm(W) × 92mm(H)
- Bolt torque specification: 45-50 N·m (M10 mounting bolts)
- Included components: Bracket base, 4×M10×25 flange bolts, 4×M10 spring washers, alignment shim set (0.1/0.2/0.5mm)
Heavy-duty trunnion mounting solution engineered for SI125 pneumatic cylinders, featuring dual-phase corrosion protection and precision-machined mounting surfaces (Ra 3.2μm). The pre-lubricated pivot mechanism incorporates a PTFE-impregnated bronze bushing for smooth articulation. Designed to withstand 500,000+ cycles at rated load with ≤0.1mm positional drift.
- Rotary material handling systems in automotive assembly
- Palletizing robot end-of-arm tooling
- Press machine die positioning mechanisms
- Heavy-duty conveyor diverters
- Semiconductor wafer handling equipment
Installation protocol:
Apply LOCTITE 243 threadlocker to mounting bolts. Use 0.02mm feeler gauge
to verify base-plate alignment. Requires annual greasing (Molykote EM-30L
recommended) through zerk fittings.
