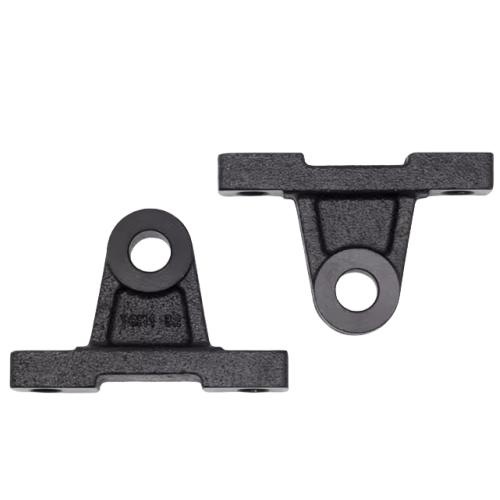

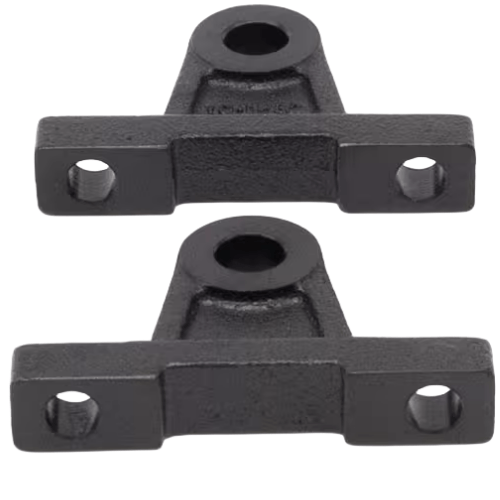

Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI200TCM1
AirTAC F-SI-TCM Trunnion Mount Bracket Kit F-SI200TCM1 Specifications
- Model: F-SI200TCM1
- Type: Complete trunnion mount kit with pre-assembled hardware
- Compatible cylinder series: SI-200 standard cylinders
- Material: Aluminum alloy ADC12 (anodized surface)
- Static load capacity: 5,500 N (radial), 3,200 N (axial)
- Mounting hole pattern: 32mm × 28mm rectangular array
- Bolt specifications: M10 × 1.5 grade 12.9 (2 pcs included)
- Anti-vibration pads: NBR rubber, Shore A 70±5
- Surface hardness: HV 0.3 450±50
- Weight: 1.85 kg ±2%
- Dimensions: 248mm(L) × 98mm(W) × 62mm(H)
- Operating temperature: -20℃ to 100℃ (continuous)
- Corrosion resistance: 96hr salt spray test passed
Precision-engineered mounting solution for heavy-duty cylinder installations, featuring dual-plane load distribution and integrated shock absorption. The machined alignment grooves ensure perfect coaxiality with cylinder trunnions, while the reinforced rib design increases torsional stiffness by 40% compared to standard brackets. Includes corrosion-resistant mounting hardware with pre-applied thread locker.
- Palletizing robot arm pivot points
- Die-casting machine ejection mechanisms
- Automotive welding fixture positioning
- Heavy conveyor gate actuators
- Paper mill roller tensioning systems
Installation protocol:
Apply 25-30 N·m torque using calibrated wrench during assembly.
Lubricate trunnion shafts with ISO VG32 hydraulic oil before mounting.
Perform concentricity check with dial indicator (max 0.05mm TIR).
| Property | Property Value |
|---|---|
| sku | F-SI200TCM1 |
