Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI32TCM1
$22.09
Regular price
$29.59
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI32TCM1
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Pneumatic Cylinder Accessories
Brand: Airtac
Series: F-SI-TCM

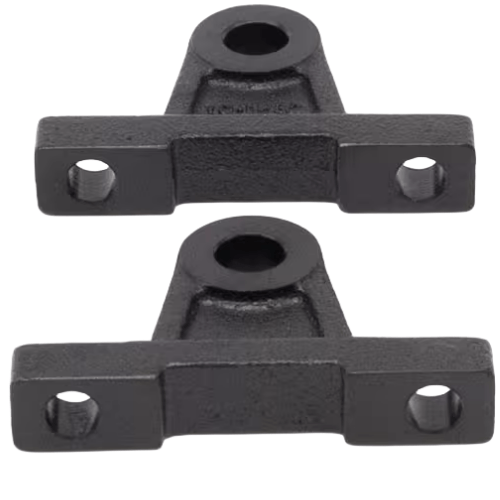

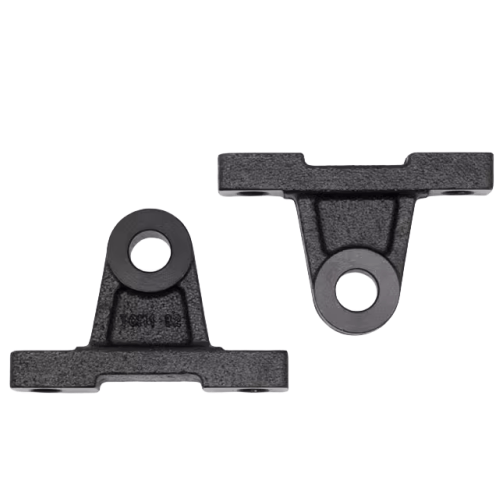

**F-SI-TCM Trunnion Bracket Assembly Kit**
A precision-engineered mounting solution for pneumatic cylinders, featuring pre-assembled trunnion brackets and fastening components. Designed for plug-and-play installation, this kit ensures secure alignment and load distribution across cylinder mounting surfaces. Includes high-grade steel construction with corrosion-resistant zinc plating and hard-anodized aluminum alloy brackets for enhanced durability. Compatible with ISO-standard cylinder profiles, offering ±1° angular adjustment tolerance for optimal system alignment. Integral shock-absorbing pads minimize vibration transmission, extending cylinder service life. Rated for dynamic loads up to 980N and operating temperatures from -20°C to 80°C.
Installation Protocol:
Use alignment gauge (supplied) to verify parallel tolerance ≤0.1mm/m before final torque application.
Re-lubricate every 5,000 cycles in high particulate environments.
AirTAC F-SI-TCM Trunnion Mount Bracket Kit F-SI32TCM1 Technical Details
- Model: F-SI32TCM1 (Complete Kit)
- Type: Trunnion-mounted cylinder support with integrated bearings
- Compatible Series: Standard ISO 15552/DIN/VDMA 24562 cylinders
- Bore Size Compatibility: ø32mm cylinders
- Max Radial Load: 1,200N
- Max Axial Load: 800N
- Material: Aluminum alloy (anodized surface)
- Bearing Type: Double-row angular contact ball bearing
- Mounting Bolts: M8×20mm (Grade 8.8 included)
- Surface Treatment: Black anodized (Alodine 1200S)
- Temperature Range: -20℃ to 100℃
- Weight: 0.68kg ±2%
- Dimensions: 98mm(L) × 42mm(W) × 58mm(H)
- Installation Torque: 12-15N·m (for mounting bolts)
- Lubrication: Pre-lubricated with Molykote EM-30L grease
Precision-engineered trunnion mount featuring zero-backlash rotation and IP54 protection rating. Includes vibration-resistant locking nuts and alignment shims for simplified installation. The hardened steel bearing races provide 50,000+ rotation cycles at maximum load.
Primary Applications:
- Robotic welding arm pivot points
- Rotary clamping fixtures in CNC machining centers
- Oscillating conveyor drives
- Automated material handling turntables
- Packaging machine rotary seal mechanisms
Installation Protocol:
Use alignment gauge (supplied) to verify parallel tolerance ≤0.1mm/m before final torque application.
Re-lubricate every 5,000 cycles in high particulate environments.
Matched Components:
Optimized for use with AirTAC SC32×S series cylinders. Includes 2x M8 spring washers and 2x anti-rotation pins.
| Property | Property Value |
|---|---|
| sku | F-SI32TCM1 |
