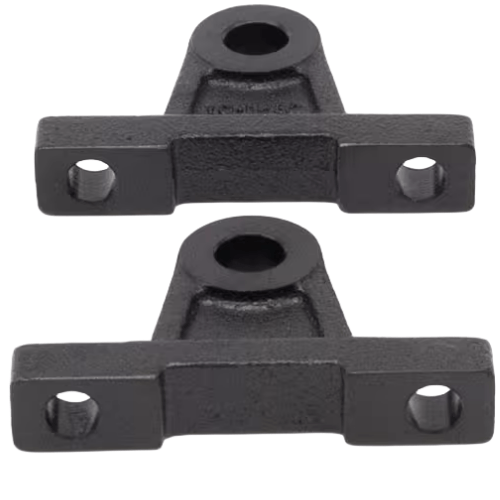

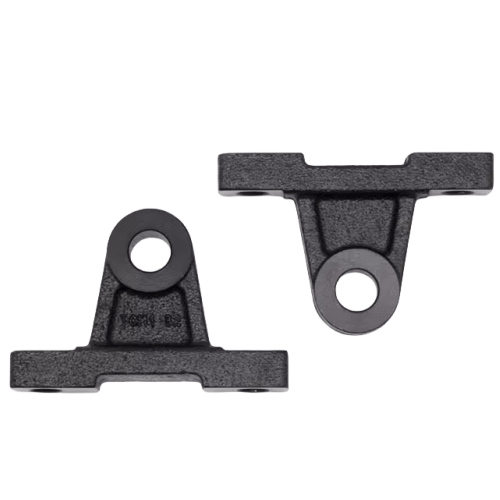

Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI32TCM2
AirTAC F-SI-TCM Trunnion Mount Bracket Kit F-SI32TCM2 Technical Details
- Model: F-SI32TCM2 (Complete Kit)
- Type: Precision-machined trunnion bracket assembly
- Material: Aluminum alloy ADC12 with black anodized finish
- Compatible cylinder bore: Ø32mm series
- Mounting hole spacing: 40±0.1mm (horizontal) × 25±0.1mm (vertical)
- Fastener specs: M6×20mm hex socket bolts (Grade 12.9) included
- Surface hardness: HV 400-450
- Operating temperature: -20℃ to 150℃ (continuous)
- Static load capacity: 1,200N (axial), 800N (radial)
- Dynamic load rating: 750N (axial), 500N (radial)
- Weight: 528g ±5g (including all mounting hardware)
- Dimensions: 82mm(L) × 42mm(W) × 38mm(H) (main block)
- Surface roughness: Ra ≤1.6μm (bearing contact areas)
- Corrosion resistance: 96hr salt spray test compliant
High-rigidity pivot mount engineered for precision cylinder alignment in multi-axis systems. Features dual angular contact bearings (ABEC-3 grade) with pre-load adjustment, enabling smooth rotational movement (±5° compensation). Includes vibration-damping shim set and anti-loosening thread locker pre-applied.
- Robotic welding gun torque compensation mechanisms
- Rotary indexing table drive units
- Palletizer arm pivot joints
- CNC tool changer positioning systems
- Packaging machine sealing head adjustments
Installation protocol:
Apply 2.5-3.0N·m torque during bolt tightening sequence (cross pattern).
Use 0.02mm feeler gauge to verify bearing clearance after assembly.
Compatible with AirTAC SC32/SU32/MI32 series cylinders.
| Property | Property Value |
|---|---|
| sku | F-SI32TCM2 |
