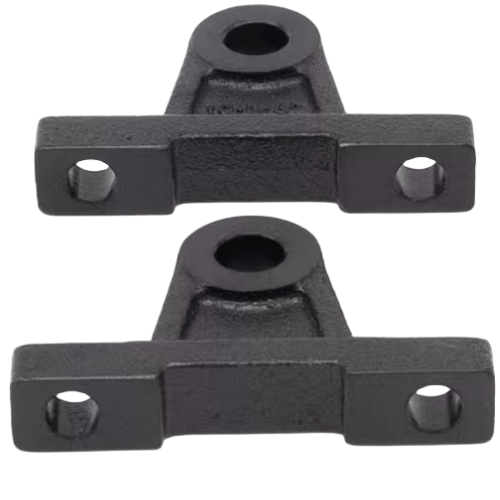

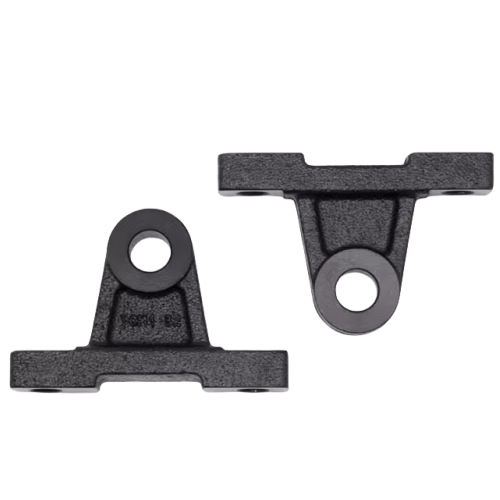

Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI40TCM1
AirTAC F-SI-TCM Trunnion Mount Bracket Kit F-SI40TCM1 Technical Details
- Model: F-SI40TCM1
- Type: Complete trunnion mount kit with pre-assembled components
- Compatible Cylinder Series: SI-40 standard cylinders
- Material: Anodized aluminum alloy (mount) + Carbon steel (shaft)
- Surface Treatment: Black anodizing (Al) + Electro-galvanized (steel)
- Static Load Capacity: 1,200N radial / 800N axial
- Dynamic Load Capacity: 650N radial / 400N axial
- Mounting Hole Pattern: 32mm × 56mm rectangular array (M6 threaded)
- Shaft Diameter: Ø12mm precision ground
- Rotation Tolerance: ±0.5° angular misalignment compensation
- Temperature Range: -20℃ to 120℃ (continuous operation)
- Weight: 480g ±2% (complete assembly)
- Dimensions: 78mm(L) × 45mm(W) × 62mm(H)
- IP Rating: IP54 (standard sealing)
- Torque Rating: Max 18N·m installation torque
Precision-engineered trunnion mount solution featuring dual-bearing support with self-lubricating brass bushings. The asymmetrical flange design enables single-handed installation while maintaining ISO 15552 alignment standards. Includes vibration-dampening washers and corrosion-resistant hardware kit.
- Pneumatic cylinder mounting in robotic articulation joints
- Conveyor system pivot points requiring multi-axis movement
- Packaging machinery with cyclic angular motion
- Automated welding fixtures needing thermal resistance
- Material handling equipment with space constraints
Installation protocol:
Apply 5-7Nm torque during initial fastening, then perform final tightening
to 16-18Nm in cross pattern. Lubricate bushings with ISO VG32 hydraulic oil
before first operation. Avoid mounting in continuous salt spray environments
without additional protection.
| Property | Property Value |
|---|---|
| sku | F-SI40TCM1 |
