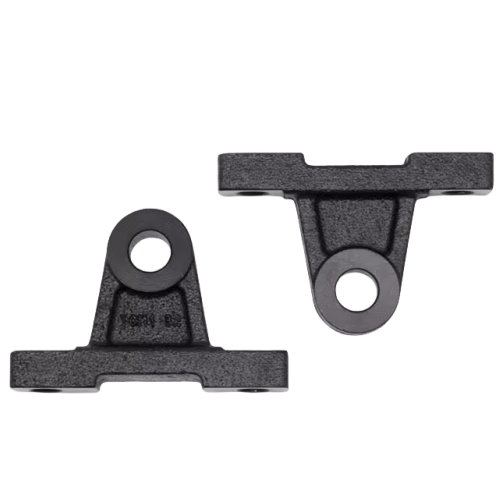

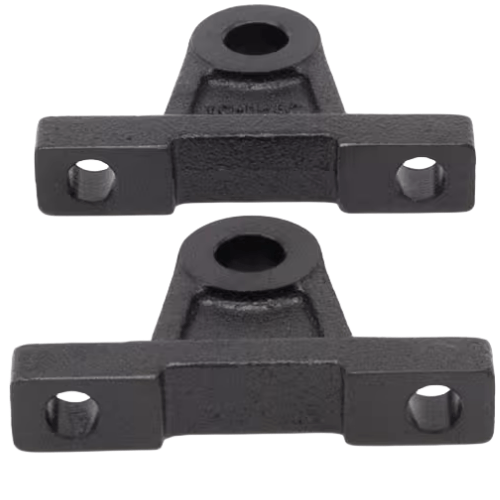

Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI40TCM2
AirTAC F-SI-TCM Trunnion Mount Bracket Kit F-SI40TCM2 Technical Specifications
- Model: F-SI40TCM2
- Type: Pre-assembled trunnion mount kit with integrated mounting hardware
- Material: Aluminum alloy (AL6063-T5)
- Static Load Capacity: 1,500 N (axial), 800 N (radial)
- Dynamic Load Capacity: 650 N (axial), 350 N (radial)
- Mounting Hole Pattern: 50mm × 40mm rectangular array
- Fastener Specs: Includes M8 × 1.25 grade 12.9 cap screws (Qty 4) with anti-loosening washers
- For Cylinder Bore: 40mm (optimized for AIRTAC SC/SU-40 series)
- Surface Treatment: Anodized (black) with MIL-A-8625 Type III corrosion resistance
- Temperature Range: -20°C to +120°C (continuous operation)
- Weight: 0.68 kg (complete kit)
- Dimensions: 98mm(L) × 62mm(W) × 34mm(H) (excluding protrusions)
- Mounting Base Thickness: 12mm (reinforced rib design)
- Angular Adjustment: ±3° via precision-machined pivot surfaces
Heavy-duty trunnion mount engineered for precision alignment of pneumatic cylinders in high-moment applications. Features dual anti-rotation pins and hardened contact surfaces (HRC 45-50) for enhanced durability. Includes pre-installed thread locker on fasteners for vibration resistance exceeding ISO 16047 standards.
- Automated material handling systems with reciprocating loads
- Packaging machinery with cyclic angular movements
- Robotic welding station positioners (supports radial torque up to 85 N·m)
- Textile manufacturing equipment with high cycle rates
- Semiconductor wafer handling robots
Installation Protocol:
Apply 22-25 N·m torque using calibrated wrench during assembly.
Requires periodic inspection every 2,000 operating hours - check for
pivot surface wear using 0.02mm feeler gauge. Compatible with
AIRTAC AMB-40 alignment tool (sold separately).
