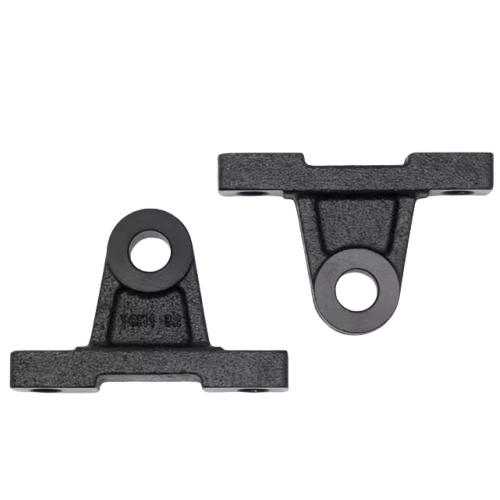

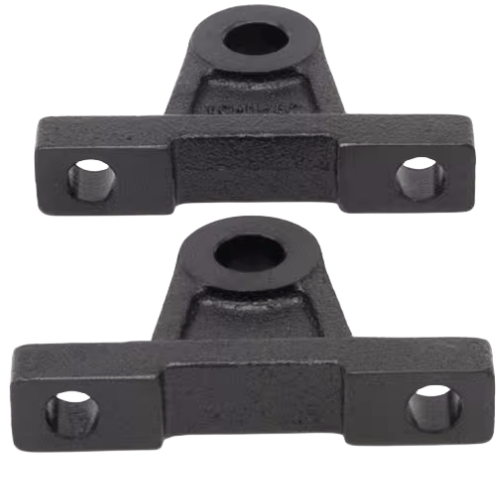

Airtac F-SI-TCM Trunnion Mount Complete Assembly Kit F-SI63TCM1
AirTAC F-SI-TCM Trunnion Mount Bracket Kit F-SI63TCM1 Technical Details
- Model: F-SI63TCM1
- Type: Precision trunnion bracket kit with integrated pivot
- Compatible series: SI series compact cylinders
- Material: Aluminum alloy (ADC12) with black anodized finish
- Max load capacity: 120N radial / 80N axial
- Mounting hole spacing: 40mm (±0.2mm tolerance)
- Thread specifications: M6×1.0 internal mounting threads
- Surface hardness: HV 400-450
- Operating temperature: -20℃ to 80℃
- Weight: 328g ±5g
- Dimensions: 72mm(L) × 45mm(W) × 38mm(H)
- Rotation angle: ±5° adjustable
- Vibration resistance: 10-55Hz, 1.5mm amplitude
High-precision trunnion mount designed for SI series compact cylinders, featuring dual angular adjustment capability and anti-loosening thread design. The hardened pivot pin (HRC 45-50) ensures smooth rotation under load, with PTFE-impregnated bushings reducing friction by 40% compared to standard models.
- Robotic end-effector mounting systems
- Precision glass handling equipment
- Semiconductor wafer transfer mechanisms
- Automated packaging line gripper assemblies
- Medical device positioning arms
Installation guidance:
Apply medium-strength thread locker (Loctite 243 recommended) on mounting screws.
Torque specification: 2.5-3.0N·m. Maintain 0.1-0.3mm clearance between bracket
and cylinder body for thermal expansion.
