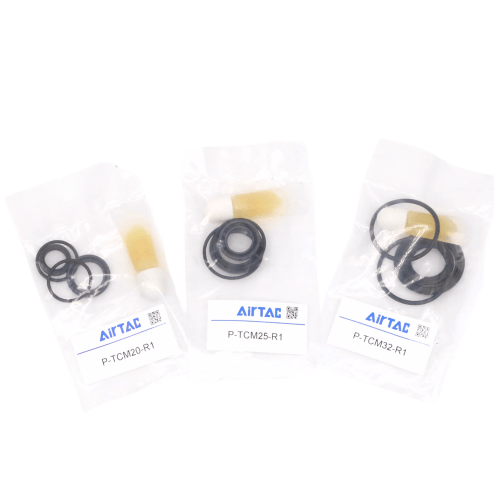

Airtac F-TCM Repair Kit P-TCM20-R1
$3.68
Regular price
$11.18
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-TCM20-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Pneumatic Cylinder Seal Kits
Brand: AirTAC
Series: F-TCM The AirTAC F-TCM Repair Kit is a professional-grade sealing solution pack specifically engineered for pneumatic cylinder maintenance. Containing genuine OEM components, this kit features precision-molded seals and wear rings compliant with ISO 6431/15552 standards. Designed for F-TCM series cylinders, it ensures optimal compression resistance (up to 1MPa) and temperature stability (-20°C to +80°C). Includes critical wear components: piston seals, rod seals, guide rings, and O-rings manufactured from NBR/PU compounds. The comprehensive kit facilitates efficient cylinder overhaul while maintaining original equipment performance parameters. Recommended for preventive maintenance cycles in automation systems requiring IP65-rated sealing integrity.
Critical Note:
Discard all old buffer seals even if visually intact.
Use cleanroom gloves during assembly to prevent oil contamination.
Brand: AirTAC
Series: F-TCM The AirTAC F-TCM Repair Kit is a professional-grade sealing solution pack specifically engineered for pneumatic cylinder maintenance. Containing genuine OEM components, this kit features precision-molded seals and wear rings compliant with ISO 6431/15552 standards. Designed for F-TCM series cylinders, it ensures optimal compression resistance (up to 1MPa) and temperature stability (-20°C to +80°C). Includes critical wear components: piston seals, rod seals, guide rings, and O-rings manufactured from NBR/PU compounds. The comprehensive kit facilitates efficient cylinder overhaul while maintaining original equipment performance parameters. Recommended for preventive maintenance cycles in automation systems requiring IP65-rated sealing integrity.
AirTAC F-TCM Repair Kit P-TCM20-R1 Technical Details
- Repair Kit Code: P-TCM20-R1
- Compatible Models: TCM20 series standard cylinders
- Component Count: 15 essential parts
- Core Components:
- Piston seals (2 pcs)
- Rod seals (2 pcs)
- Wear rings (2 pcs)
- O-rings (6 pcs)
- Cushion seals (2 pcs)
- Backup rings (1 set)
- Material Composition: NBR (Nitrile) rubber seals, hardened steel springs
- Temperature Tolerance: -20°C to 80°C
- Pressure Rating: 0.05-1.0 MPa
- Weight: 220g ±5g
- Package Dimensions: 180mm(L) × 95mm(W) × 25mm(H)
- Storage Life: 5 years in original packaging
- Compliance: RoHS compliant
Complete overhaul kit for TCM20 series cylinders, containing factory-grade replacement seals and wear components. Features oil-resistant NBR formulations and precision-molded parts matching OEM specifications. Includes anti-extrusion rings for high-pressure applications.
Maintenance Scenarios:
- Cylinder rebuidling after 5M+ cycles
- Preventive maintenance during annual shutdowns
- Restoration of air leakage issues (>0.5L/min)
- Recovery from contamination damage
- Bore scoring remediation (light damage)
Rebuild Procedure:
- Disassemble cylinder using T20 Torx driver
- Clean components with non-petroleum solvent
- Lubricate new seals with ISO VG32 hydraulic oil
- Install cushion seals with chamfered side inward
- Torque end caps to 12-15N·m
Critical Note:
Discard all old buffer seals even if visually intact.
Use cleanroom gloves during assembly to prevent oil contamination.
