Airtac F-TCM Repair Kit P-TCM32-R2
Brand: AirTAC

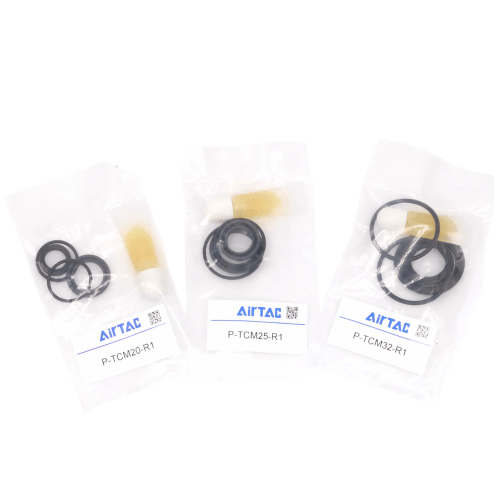

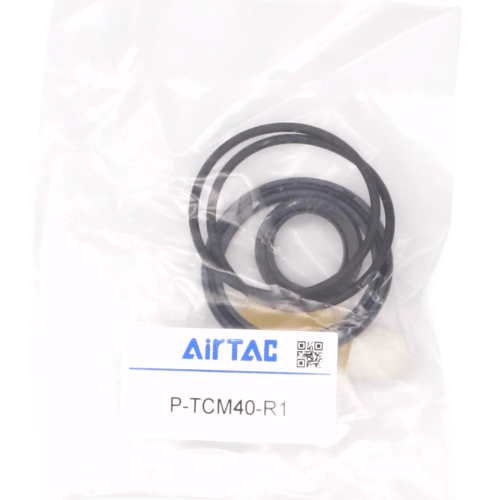

Series: F-TCM The AirTAC F-TCM Repair Kit is a professional-grade sealing solution pack specifically engineered for pneumatic cylinder maintenance. Containing genuine OEM components, this kit features precision-molded seals and wear rings compliant with ISO 6431/15552 standards. Designed for F-TCM series cylinders, it ensures optimal compression resistance (up to 1MPa) and temperature stability (-20°C to +80°C). Includes critical wear components: piston seals, rod seals, guide rings, and O-rings manufactured from NBR/PU compounds. The comprehensive kit facilitates efficient cylinder overhaul while maintaining original equipment performance parameters. Recommended for preventive maintenance cycles in automation systems requiring IP65-rated sealing integrity.
AirTAC F-TCM Repair Kit P-TCM32-R2 Technical Details
- Model: P-TCM32-R2 (F-TCM Series Repair Kit)
- Compatible Components: TCM32 series compact cylinders
- Seal Types Included:
- Piston seals (NBR/PU variants)
- Rod seals (double-lip design)
- Wear bands (glass fiber reinforced)
- O-rings (AS568A standard sizes)
- Material Specifications:
- Primary seals: Nitrile Rubber (NBR) - Oil resistant
- Alternative option: Polyurethane (PU) available on request
- Backup rings: PTFE-impregnated fabric
- Temperature Range:
- Standard (NBR): -20°C to +80°C
- High-temp variant (FKM): -15°C to +150°C (special order)
- Pressure Rating: 0.05-1.0 MPa (operational), 1.5 MPa (peak)
- Weight: 220g ±5% (complete kit)
- Package Dimensions: 180mm(L) × 95mm(W) × 25mm(H)
- Storage Conditions: 15-40°C in original sealed packaging
- Shelf Life: 5 years from manufacture date (unopened)
Comprehensive maintenance solution for TCM32 series compact cylinders, containing precision-engineered replacement seals and wear components. Features laser-etched part identification and anti-static packaging. Designed for field repairs without full cylinder disassembly, with components pre-lubricated with silicone-free grease (Molykote EM-30L equivalent).
- Preventive maintenance in semiconductor handling robots
- Overhaul of packaging line pick-and-place actuators
- Rehabilitation of CNC machine tool clamps
- Field service for automotive assembly jigs
- Restoration of medical device linear actuators
Maintenance protocol:
Replace all seals simultaneously using included alignment tools.
Clean components with non-petroleum solvent (isopropyl alcohol recommended)
before installation. Torque end caps to 2.5-3.0 N·m using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-TCM32-R2 |
