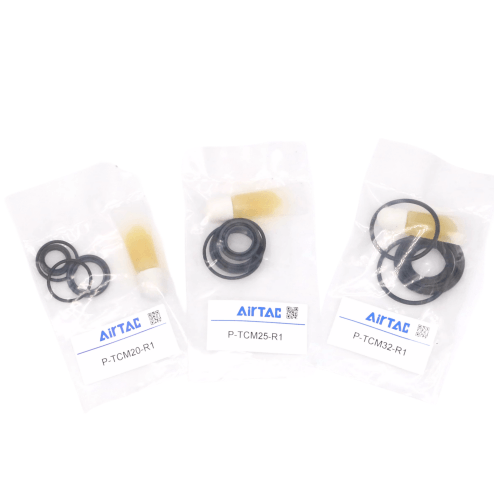

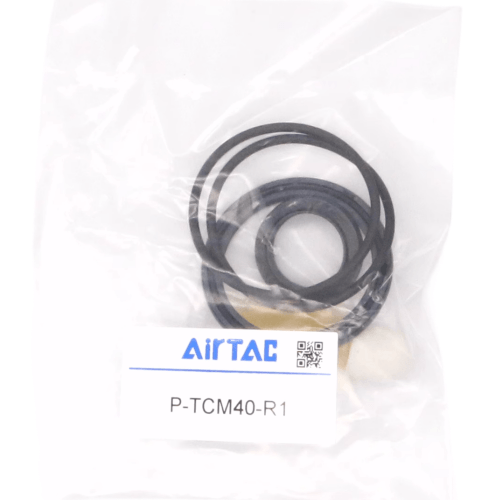

Airtac F-TCM Repair Kit P-TCM40-R1
Brand: AirTAC
Series: F-TCM The AirTAC F-TCM Repair Kit is a professional-grade sealing solution pack specifically engineered for pneumatic cylinder maintenance. Containing genuine OEM components, this kit features precision-molded seals and wear rings compliant with ISO 6431/15552 standards. Designed for F-TCM series cylinders, it ensures optimal compression resistance (up to 1MPa) and temperature stability (-20°C to +80°C). Includes critical wear components: piston seals, rod seals, guide rings, and O-rings manufactured from NBR/PU compounds. The comprehensive kit facilitates efficient cylinder overhaul while maintaining original equipment performance parameters. Recommended for preventive maintenance cycles in automation systems requiring IP65-rated sealing integrity.
AirTAC F-TCM Repair Kit P-TCM40-R1 Technical Details
- Repair Kit Code: P-TCM40-R1
- Compatibility: Designed for F-TCM series valves (TCM40 size)
- Component Set:
- PTFE piston seals (2 pcs)
- NBR O-rings (4 sizes, 8 pcs total)
- Stainless steel springs (2 types)
- Wear-resistant guide rings
- Valve spool repair set
- Anti-extrusion rings
- Material Specifications:
- Seals: Oil-resistant NBR & reinforced PTFE
- Springs: SUS304 stainless steel
- Guide components: POM composite
- Operating Pressure Range: 0.2-1.0 MPa
- Temperature Tolerance: -20℃ to 80℃ (continuous use)
- Weight: 220g ±5g (complete kit)
- Package Dimensions: 185mm(L) × 95mm(W) × 35mm(H)
- Shelf Life: 5 years in original packaging
- Compliance: RoHS 2011/65/EU
Comprehensive maintenance solution for TCM40 pneumatic valves, containing precision-matched components to restore original performance. Features wear-compensating seals and corrosion-resistant springs engineered for 500,000+ cycles. Kit includes specialized installation tools and anti-static packaging.
- Preventive maintenance in automated assembly lines
- Valve leakage remediation in packaging machinery
- Overhaul of pneumatic actuators in automotive production
- Restoration of CNC machine tool pneumatic systems
- Field service repairs for material handling equipment
Maintenance protocol:
Replace entire seal set every 2 years or 8,000 operating hours.
Use silicone-free lubricant during assembly. Perform pressure decay test
(≤0.05 MPa/min drop) after repair.
- Depressurize system and clean valve exterior
- Disassemble using T20 torque driver (max 1.2N·m)
- Replace components in reverse removal order
- Verify 0.5-0.8mm seal compression using depth gauge
| Property | Property Value |
|---|---|
| sku | P-TCM40-R1 |
