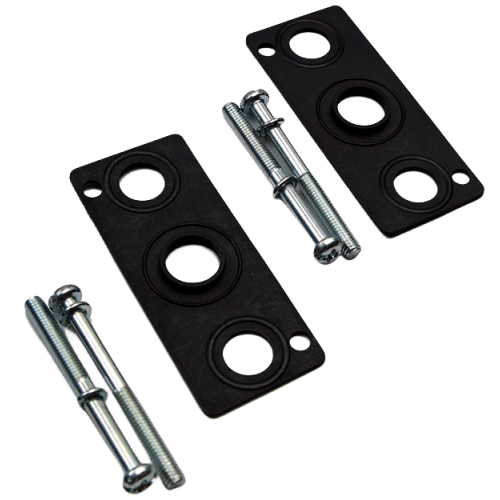

Airtac P-3V-R1 Repair Kit P-3V110-R1
2. Features centralized air supply/exhaust ports and standardized wiring layout to facilitate troubleshooting;
3. Offers flexible configuration and scalable expansion capabilities, allowing versatile combination and adjustment of connected directional control valve quantities;
Category: Cylinder Seal Kits , Brand: AIRTAC , Series: P-3V-R1
AirTAC P-3V-R1 Repair Kit P-3V110-R1 Technical Details
- Full model compatibility: For 3V110 series solenoid valves (3V110-06/08/10)
- Seal types included: 4x O-rings (NBR), 2x U-cups (PU), 1x diaphragm seal
- Metallic components: Stainless steel spring (SUS304), brass valve seat (C3604)
- Pressure tolerance: 0.05-1.0 MPa (compatible with original valve specs)
- Temperature resistance: -20℃ to 80℃ (NBR seals)/-10℃ to 100℃ (PU seals)
- Chemical compatibility: Resists hydraulic oils, water glycol, and mild acids
- Weight: 0.25kg (complete kit with packaging)
- Package dimensions: 120mm(L) × 85mm(W) × 25mm(H)
- Storage conditions: Keep in original anti-static bag at 15-35℃, ≤70% RH
- Shelf life: 5 years from manufacture date (indicated on sealed pouch)
Comprehensive maintenance solution for 3V110 series 3/2-way solenoid valves, containing all wear-prone components. Precision-molded seals maintain original flow characteristics (Cv=0.25) and response time (<15ms). Kit includes specialized tools: alignment pin and seal installation sleeve.
- Annual preventive maintenance cycles
- Post-contamination events (e.g., particle ingress)
- Pressure drop remediation (≥15% from baseline)
- Seal degradation in high-cycle applications (>500k actuations)
Rebuild procedure:
Disassemble valve in clean environment (ISO Class 7 recommended).
Lubricate seals with PAG-based grease (viscosity 32-46 cSt) before installation.
Torque body screws to 0.8-1.2 N·m using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-3V110-R1 |
