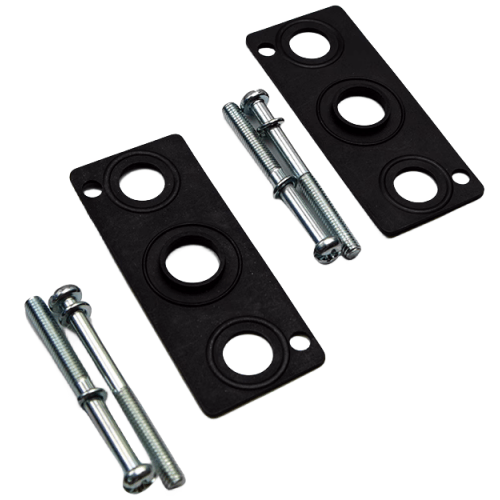

Airtac P-3V-R1 Repair Kit P-3V220-R1
$3.94
Regular price
$11.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-3V220-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Enables modular grouping of directional control valves within the same series, achieving space optimization and cost reduction;
2. Features centralized air supply/exhaust ports and standardized wiring layout to facilitate troubleshooting;
3. Offers flexible configuration and scalable expansion capabilities, allowing versatile combination and adjustment of connected directional control valve quantities;
Category: Cylinder Seal Kits , Brand: AIRTAC , Series: P-3V-R1
Rebuild protocol:
Disassemble using 2.5Nm torque limit, clean with non-polar solvent,
lubricate seals with PAG grease (ISO VG 32). Perform 50 test cycles
before returning to service.
Critical note:
Not compatible with phosphate ester fluids. Maximum storage period
in original packaging: 3 years from manufacture date (marked on kit label).
2. Features centralized air supply/exhaust ports and standardized wiring layout to facilitate troubleshooting;
3. Offers flexible configuration and scalable expansion capabilities, allowing versatile combination and adjustment of connected directional control valve quantities;
Category: Cylinder Seal Kits , Brand: AIRTAC , Series: P-3V-R1
AirTAC P-3V-R1 Repair Kit (P-3V220-R1) Technical Details
- Full model designation: P-3V220-R1 Maintenance Kit
- Compatible valve series: P-3V220 solenoid valves
- Component count: 23 precision parts
- Core components:
- NBR O-rings (Shore A 70±5)
- Fluorine rubber seals (FKM)
- Stainless steel spring (SUS304)
- Valve seat (POM composite)
- Guide bush (Brass C3604)
- Anti-vibration washers
- Pressure compatibility: 0.05-1.0 MPa
- Temperature tolerance: -20℃ to 100℃ (intermittent 120℃)
- Weight: 380g ±5% (entire kit)
- Package dimensions: 185mm(L) × 120mm(W) × 35mm(H)
- Storage humidity: ≤75% RH non-condensing
- Certification: RoHS compliant
Comprehensive overhaul solution for 5/2-way pneumatic valves, featuring upgraded wear-resistant seals and precision-machined replacement parts. Kit includes specialized tools: valve core extractor and alignment pin. Components undergo 100% dimensional inspection with 5μm tolerance.
Maintenance Scenarios:
- Preventive maintenance every 5 million cycles
- Recovery of valves with air leakage >15% rated flow
- Post-contamination cleaning (e.g., particle ingress)
- Adaptation for high-frequency applications (>3Hz)
Rebuild protocol:
Disassemble using 2.5Nm torque limit, clean with non-polar solvent,
lubricate seals with PAG grease (ISO VG 32). Perform 50 test cycles
before returning to service.
Critical note:
Not compatible with phosphate ester fluids. Maximum storage period
in original packaging: 3 years from manufacture date (marked on kit label).
| Property | Property Value |
|---|---|
| sku | P-3V220-R1 |
