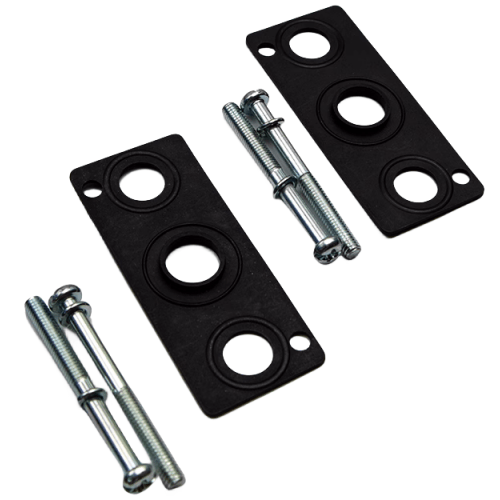

Airtac P-3V-R1 Repair Kit P-3V320-R1
2. Features centralized air supply/exhaust ports and standardized wiring layout to facilitate troubleshooting;
3. Offers flexible configuration and scalable expansion capabilities, allowing versatile combination and adjustment of connected directional control valve quantities;
Category: Cylinder Seal Kits , Brand: AIRTAC , Series: P-3V-R1
AirTAC P-3V-R1 Repair Kit P-3V320-R1 Technical Details
- Model: P-3V320-R1 (For 3V210/3V310/3V320 Series Valves)
- Kit Contents: Stem seals, O-rings, spring set, spool assembly, diaphragm, retaining clips
- Material Specifications:
- Seals: HNBR (Hydrogenated Nitrile) for oil/fuel resistance
- Springs: SUS304 stainless steel
- Spool: Anodized aluminum alloy
- Temperature Tolerance: -25℃ to 120℃ (intermittent peak 150℃)
- Pressure Compatibility: 0.05-1.0 MPa operational range
- Weight: 220g ±5% (including packaging)
- Package Dimensions: 185mm(L) × 95mm(W) × 35mm(H)
- Storage Life: 5 years in original sealed packaging
- Compliance: RoHS 2011/65/EU compliant
Comprehensive maintenance kit for 3V-series pilot-operated solenoid valves, containing all wear-prone components for full overhaul. Features upgraded HNBR seals that withstand aggressive pneumatic fluids (ISO VG32 and phosphate ester oils). Includes precision-matched spool components with ±0.002mm tolerance.
- Valve stem leakage repair in CNC machine tool clutches
- Preventive maintenance for food packaging line actuators
- Restoring flow consistency in semiconductor wafer handlers
- Rebuilding valves exposed to high-cycle operations (>500k cycles)
Maintenance protocol:
Always degrease valve body with IPA before assembly. Apply silicone-free lubricant (Molykote EM-30L recommended) to sliding surfaces. Torque housing screws to 0.8-1.2 N·m in crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-3V320-R1 |
