Airtac P-3V2M Blind Plate P-3V2M-R2
$3.01
Regular price
$10.51
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-3V2M-R2
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting structure ensures responsive switching; Normally closed (NC) and Normally open (NO) configurations available;
2. Coaxial poppet design delivers excellent sealing performance and high flow capacity; Oil-free operation requires no lubrication;
3. Integrated manual override facilitates installation and commissioning;
4. Modular base integration supports multi-valve configurations for space-efficient layouts;
5. Centralized air supply and wiring enhance troubleshooting efficiency during system diagnostics;
6. Flexible modular design allows unlimited expansion and combination of valve types/quantities;
7. Dedicated base gasket with fixed orientation prevents NC/NO conversion via sealing surface rotation.
Category: Cover Plate | Brand: AIRTAC | Series: P-3V2M
Installation protocol:
Clean mating surfaces with isopropyl alcohol before assembly.
Torque sequence should follow cross pattern (5mm hex key required).
Maximum reuse cycles: 15 times (inspect seals after 5 installations).
2. Coaxial poppet design delivers excellent sealing performance and high flow capacity; Oil-free operation requires no lubrication;
3. Integrated manual override facilitates installation and commissioning;
4. Modular base integration supports multi-valve configurations for space-efficient layouts;
5. Centralized air supply and wiring enhance troubleshooting efficiency during system diagnostics;
6. Flexible modular design allows unlimited expansion and combination of valve types/quantities;
7. Dedicated base gasket with fixed orientation prevents NC/NO conversion via sealing surface rotation.
Category: Cover Plate | Brand: AIRTAC | Series: P-3V2M

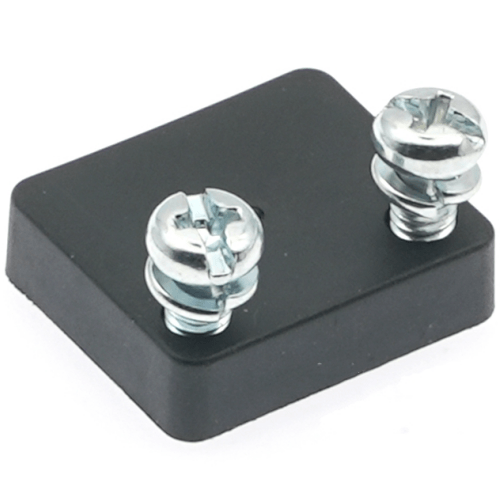

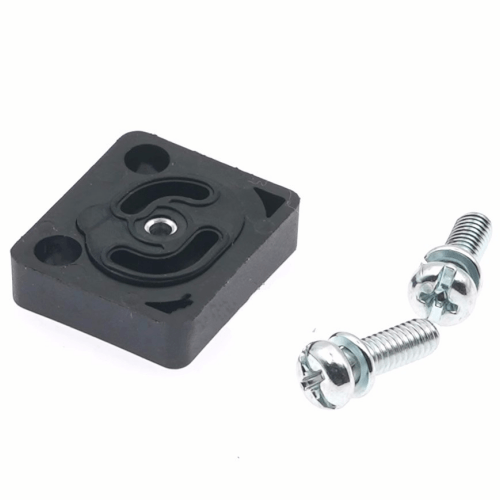

AirTAC P-3V2M-R2 Blind Plate Technical Details
- Model: P-3V2M-R2 (P-3V2M series)
- Type: Modular blind plate for manifold systems
- Material: Anodized aluminum alloy (AL6063-T5)
- Surface hardness: HV 0.3/15 ≥ 150
- Port configuration: Matches ISO 5599-1 standard
- Seal material: NBR (Nitrile) rubber inserts
- Pressure rating: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Mounting torque: 1.2–1.5 N·m (recommended)
- Weight: 78g ±2g
- Dimensions: 35mm(L) × 22mm(W) × 12mm(H)
- Surface treatment: Sandblasting + Black oxidation
- Compatibility: P-3V2M manifold blocks and 3V2 series valves
Precision-engineered sealing plate designed for terminating modular pneumatic manifolds. Features dual O-ring grooves with compression limiters to prevent over-tightening. The diamond-knurled edges provide secure grip during installation in confined spaces.
Primary Applications:
- End sealing in multi-station valve manifolds
- Pneumatic system maintenance isolation points
- Test bench manifold configurations
- Customizable automation equipment layouts
- Leak prevention in modular assembly systems
Installation protocol:
Clean mating surfaces with isopropyl alcohol before assembly.
Torque sequence should follow cross pattern (5mm hex key required).
Maximum reuse cycles: 15 times (inspect seals after 5 installations).
| Property | Property Value |
|---|---|
| sku | P-3V2M-R2 |
