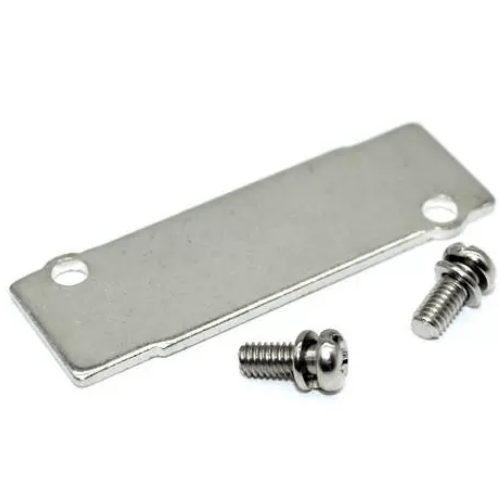

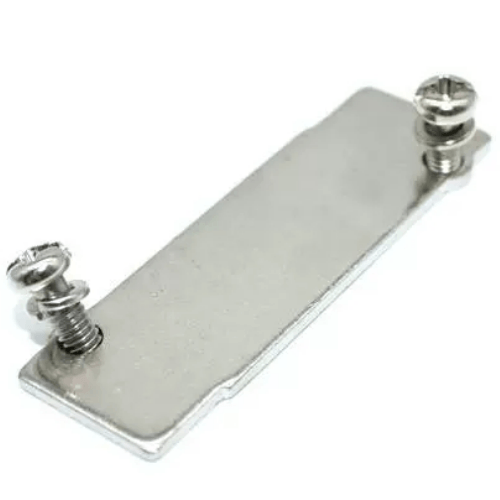

Airtac P-7V Blank Plate Repair Kit P-7V0500M-R1
2. Internal exhaust structure collects residual air and centrally discharges through R/S ports;
3. Aluminum alloy die-cast body with optimized internal cavity design to enhance flow capacity;
4. Available in threaded or quick-connect versions, compatible with base-mounted valve group integration for space-saving installation.
Category: Cover Plate | Brand: AirTAC | Series: P-7V
AirTAC P-7V Blind Plate Repair Kit P-7V0500M-R1 Technical Details
- Model: P-7V0500M-R1 (Compatible with P-7V series cylinders)
- Component Type: Complete seal replacement kit
- Included Components:
- Nitrile rubber (NBR) rod seals (x2)
- Wiper seals with dust lip (x2)
- O-rings (AS568-012 size, x4)
- Backup rings (x2)
- Lubrication grease sachet (3g silicone-free)
- Material Hardness: 70±2 Shore A (seals)
- Temperature Range: -20℃ to 100℃ (continuous use)
- Pressure Rating: 0.05-1.0 MPa
- Chemical Resistance: Compatible with phosphate ester oils, water glycol
- Weight: 85g ±5% (including packaging)
- Dimensions: 120mm(L) × 80mm(W) × 25mm(H) (blister pack size)
- Shelf Life: 8 years in original packaging
Professional maintenance solution for P-7V series pneumatic cylinders, containing all wear-prone components for end cap refurbishment. Features anti-extrusion design seals with integrated lubrication pockets, engineered for high-cycle applications. Kit includes torque specifications (1.2-1.5N·m for M5 screws) and alignment markers for proper installation.
- Cylinder rebuilds after 500,000+ cycles
- Preventive maintenance in food processing equipment
- Leakage correction in automated assembly lines
- Overhaul of palletizing robot actuators
- Restoration of medical device pneumatic systems
Installation protocol:
Clean cylinder bore with IPA (isopropyl alcohol) before assembly.
Apply included grease to seal grooves using cross-hatch pattern.
Cure time: 30 minutes minimum before pressurization.
| Property | Property Value |
|---|---|
| sku | P-7V0500M-R1 |
