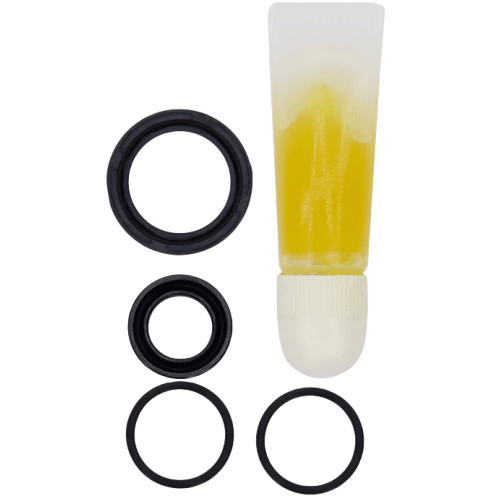

Airtac P-ACQD Repair Kit P-ACQD100-R2
AirTAC P-ACQD100-R2 Cylinder Repair Kit Technical Details
- Model: P-ACQD100-R2 (2nd generation design)
- Compatible Series: ACQ/ACQD/ACQDU series cylinders
- Bore Sizes Covered: ø32mm to ø100mm
- Seal Material: HNBR (Hydrogenated Nitrile) + Polyurethane hybrid compound
- Included Components: Piston seals, rod seals, wear bands, cushion rings, O-rings
- Temperature Range: -30℃ to 120℃ (dry air conditions)
- Pressure Rating: 0.05-1.2 MPa
- Weight: 320g ±5% (including anti-static packaging)
- Dimensions: 150mm(L) × 100mm(W) × 25mm(H)
- Storage Humidity: ≤65% RH (original sealed package)
- Certification: RoHS compliant
Comprehensive maintenance solution for pneumatic cylinder overhaul, featuring enhanced wear-resistant seals with 35% longer service life compared to standard kits. Includes specialized anti-extrusion rings for high-side-load applications. Pre-lubricated with silicone-free grease compatible with ISO 8573-1 Class 3 air quality standards.
- Preventive maintenance cycles in automotive assembly lines
- Emergency repair of material handling cylinders in logistics systems
- Rebuilding contaminated actuators in food processing machinery
- Restoring precision motion in semiconductor manufacturing equipment
Maintenance protocol:
Always perform barrel honing inspection before installation. Use pneumatic-grade
lubricant (ISO VG 32 equivalent) during reassembly. Torque mounting bolts
to 12-15 N·m using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-ACQD100-R2 |
