Airtac P-ACQD Repair Kit P-ACQD40-R1
AirTAC P-ACQD40-R1 Repair Kit Technical Details
- Model Compatibility: Designed for ADQ/ACQ/ADQZ series 40mm bore cylinders

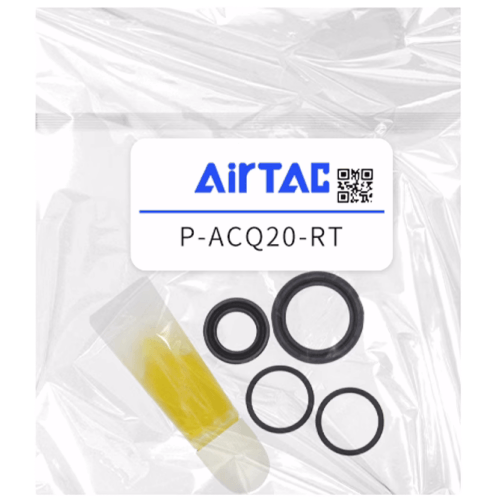

- Kit Contents: Piston seals, rod seals, wear rings, O-rings, backup rings, scraper seals
- Material Composition:
- Seals: Polyurethane (PU) and Nitrile Rubber (NBR)
- Backup Rings: Glass-filled PTFE
- Scrapers: Polyester elastomer
- Temperature Range: -30℃ to 100℃ (instantaneous peak 120℃)
- Pressure Rating: 0.05-1.2 MPa (optimized for 0.2-0.8 MPa operation)
- Chemical Resistance: Compatible with phosphate ester oil, water glycol, and mineral-based lubricants
- Package Dimensions: 185mm(L) × 125mm(W) × 35mm(H)
- Gross Weight: 420g ±5% (including anti-static packaging)
- Shelf Life: 5 years in original unopened packaging
- Storage Requirements: Keep in dark, dry environment below 40℃/70% RH
Comprehensive maintenance solution for 40mm pneumatic cylinders, featuring wear-compensating seal designs that extend service intervals by 30-40% compared to standard kits. Includes specialized anti-extrusion components for high-side-load applications. All seals are pre-lubricated with silicone-free grease (MIL-G-4343 compliant).
- Overhauling automated assembly line actuators
- Food processing cylinder maintenance (FDA-compliant materials)
- High-cycle machinery in semiconductor cleanrooms
- Hydraulic hybrid systems using fire-resistant fluids
- Rehabilitation of corroded cylinders in marine environments
Installation Protocol:
Clean cylinder surfaces with isopropyl alcohol (≥99% purity) before assembly.
Use torque-controlled tools for end cap bolts (12-15 N·m specification).
Perform 50-100 test cycles at reduced pressure before full operation.
| Property | Property Value |
|---|---|
| sku | P-ACQD40-R1 |
