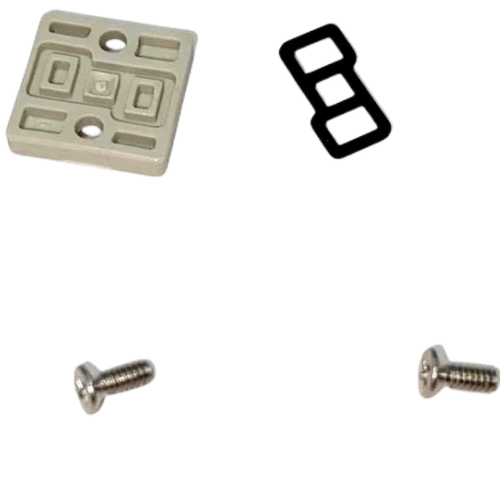

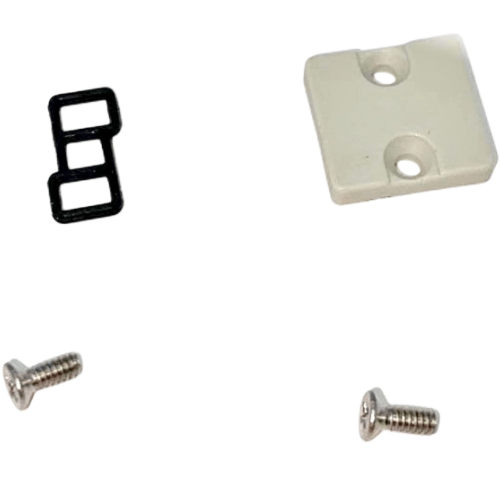

Airtac P-CPV10M Blind Plate Assembly P-CPV10M-R2
2. Features centralized oxygen supply/exhaust ports and unified wiring layout to facilitate troubleshooting during system malfunctions.
3. Modular system with high expandability, enabling flexible combinations and extensions of connected solenoid valves. Optional blind plates available for configuration adjustments.
Category: Manifold Plates | Brand: AirTAC | Series: P-CPV10M
AirTAC P-CPV10M-R2 Blind Plate Assembly Technical Details
- Model: P-CPV10M-R2 (Revision 2)
- Type: ISO 15407-2 compliant blind plate
- Material: Anodized aluminum alloy (AL6063-T5)
- Surface hardness: HV 0.3/15 ≥ 350
- Seal material: NBR rubber (70±2 Shore A)
- Applicable tube diameter: Ø10mm (3/8")
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃ (continuous use)
- Weight: 228g ±5g
- Dimensions: 54mm(L) × 34mm(W) × 18mm(H)
- Mounting pattern: 25mm modular spacing
- Surface roughness: Ra ≤ 1.6μm
- Corrosion resistance: 96hrs salt spray test passed
Precision-machined sealing component designed for terminating unused ports in ISO valve manifolds. Features dual O-ring grooves with pressure-equalizing channels to prevent extrusion under cyclic loading. The anodized surface treatment provides enhanced wear resistance against manifold abrasion.
- Modular pneumatic valve stack termination
- Vacuum system port sealing in pick-and-place machines
- Multi-station test bench manifold configuration
- Food processing equipment with frequent line reconfiguration
- Semiconductor fab tool pneumatic isolation
Installation guidance:
Apply silicone-free lubricant (Molykote 111 recommended) on O-rings before assembly.
Tighten M5 mounting screws diagonally to 0.8-1.2 N·m torque using crisscross pattern.
Maximum allowable side load: 15N.
| Property | Property Value |
|---|---|
| sku | P-CPV10M-R2 |
