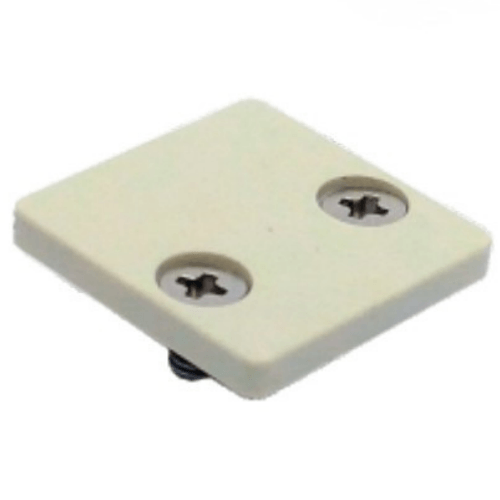

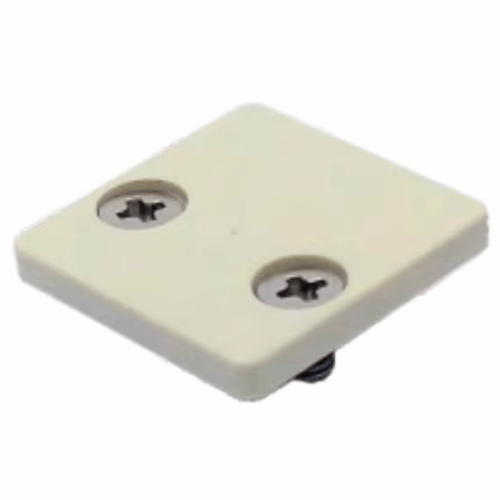

Airtac P-CPV15S Blanking Plate Assembly P-CPV15S-R2
2、Features modular design with exceptional expandability, allowing flexible configuration of connected solenoid valve quantities. Includes optional blanking plate for customized assembly.
Category: Manifold End Plate , Brand: Airtac , Series: P-CPV15S
AirTAC P-CPV15S Blind Plate Assembly P-CPV15S-R2 Technical Details
- Model: P-CPV15S-R2 (Revision 2)
- Type: Non-through flow blind plate for CPV series manifolds
- Material: Anodized aluminum alloy (AL6063-T5)
- Port configuration: 2-port block (ISO 15407-1 compliant)
- Port thread size: G1/8 (BSPP) or optional NPT1/8
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: Oil-resistant NBR (Nitrile) rubber (Shore A70±5)
- Surface hardness: HV 120±15 (anodized layer)
- Installation torque: 1.5-2.0 N·m (13-18 lb-in)
- Weight: 48g ±2g (1.69 oz)
- Dimensions: 15mm (W) × 15mm (D) × 10mm (H) / 0.59" × 0.59" × 0.39"
- Compatibility: CPV10/15/20 series manifolds
- Certification: RoHS compliant
Precision-machined sealing component designed to terminate unused ports in modular pneumatic manifolds. Features dual O-ring grooves with pre-installed seals and anti-vibration locking design. The diamond-knurled surface ensures tool-free manual installation while maintaining IP54-level dust/water protection when properly seated.
- Blocking unused valve positions in CPV manifold systems
- Maintenance safety isolation in production line pneumatics
- Pressure test port sealing during system commissioning
- Modular system reconfiguration in packaging machinery
- Leak prevention in cleanroom automation equipment
Installation protocol:
Clean port threads with IPA before assembly. Apply thread sealant only to male threads,
avoiding contact with O-rings. Torque in 1/4-turn increments using a calibrated wrench.
Re-torque after 24hr thermal cycling in high-vibration environments.
| Property | Property Value |
|---|---|
| sku | P-CPV15S-R2 |
