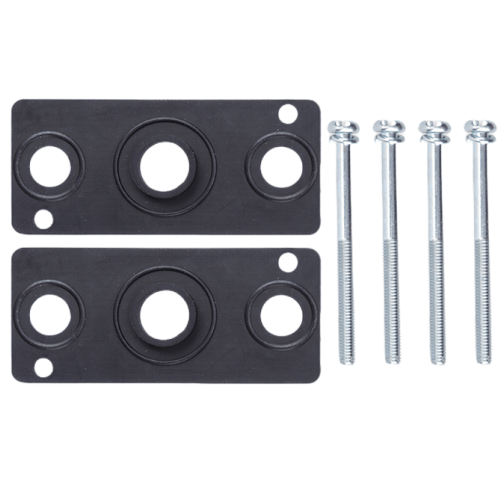

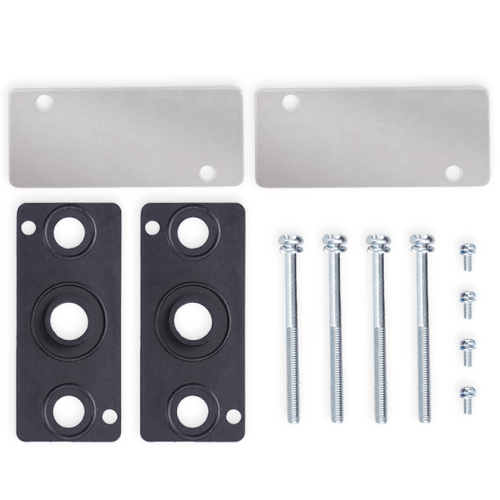

Airtac P-ESV Blind Cover P-ESV600M-R2
1. Sleek exterior design with compact structural configuration;
2. Mounting interface dimensions comply with ISO 55991 international standard;
3. Proprietary sealing components ensure high flow capacity and extended service life;
4. Series 200/300/400 enable reconfiguration between internal pilot, external pilot, and pneumatic control valve modes through directional adjustment of sealing assemblies;
5. Requires base mounting (available in single-unit or modular multi-unit configurations), supporting flexible multi-valve combinations;
6. Bases feature diversified pneumatic porting and mounting options for enhanced adaptability;
7. Integrated exhaust throttling functionality in Series 200/300/400 bases eliminates need for external throttle valves.
Category: Cover Plates | Brand: AIRTAC | Series: P-ESV
AirTAC P-ESV600M-R2 Blind Cover Solenoid Valve Specifications
- Model: P-ESV600M-R2
- Type: 5-port 2-position single solenoid (monostable)
- Port configuration: 5/2-way
- Port size: PT3/8 (G1/2 optional)
- Operating pressure: 0.1–0.8 MPa
- Voltage options: DC12V, DC24V, AC110V, AC220V (±10%)
- Weight: ~450g (including coil)
- Dimensions: 90mm(L) × 45mm(W) × 45mm(H)
- Seal material: NBR (Nitrile), optional FKM (Fluorocarbon)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Flow capacity: 850 l/min (ANR)
- Response time: ≤15ms (open), ≤20ms (close)
- Protection rating: IP67 (coil), IP40 (valve body)
- Manual override: Not equipped (blind cover design)
- Mounting type: ISO 5599-1 standard sub-base
High-flow solenoid valve with rugged aluminum alloy body and blind cover protection, engineered for dust-prone environments. Features low power consumption (≤2.2W) and anti-vibration design. Requires 5μm filtered/dried compressed air (lubricated or non-lubricated). Includes surge suppression circuit for extended coil life.
- Pneumatic cylinder control in automated assembly lines
- Dust collector valve sequencing systems
- Foundry equipment pneumatic circuits
- Packaging machine clamp actuation
- Automotive welding fixture controls
- Material handling conveyor systems
Installation note:
Ensure proper grounding of metal parts. Maintain minimum 20mm clearance
from heat sources. Use thread sealant on port connections (do not over-tighten).
Recommended maintenance: Inspect seals every 500,000 cycles.
