Airtac P-MAL Repair Kit P-MAL32-R1
Brand: AIRTAC
Series: P-MAL Repair Kit
The AIRTAC P-MAL Cylinder Seal Repair Kit is a precision-engineered maintenance solution specifically designed for pneumatic cylinder overhaul. This OEM-grade kit contains complete sealing components including:
- Nitrile rubber O-rings
- Polyurethane piston seals
- Rod seals and wipers
- Specialized guide rings
Fully compliant with ISO 6431/6432 standards, the kit ensures optimal dimensional accuracy and material compatibility with original P-MAL series cylinders. Featuring enhanced wear resistance and low-friction characteristics, these seals maintain cylinder efficiency while preventing air leakage and pressure drop. Essential for preventive maintenance and cylinder rehabilitation in industrial automation systems.
AirTAC P-MAL32-R1 Maintenance Kit Technical Details
- Model: P-MAL32-R1
- Compatible Series: MAL32 pneumatic cylinders

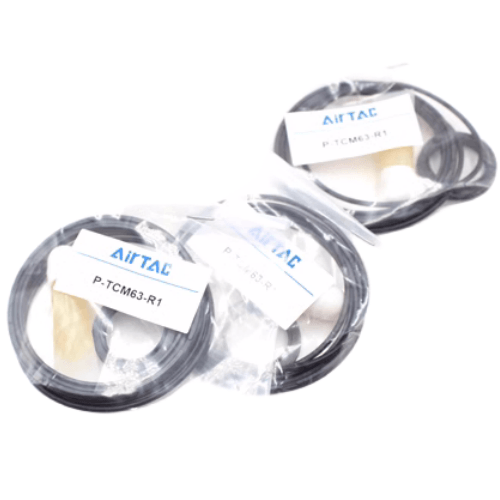

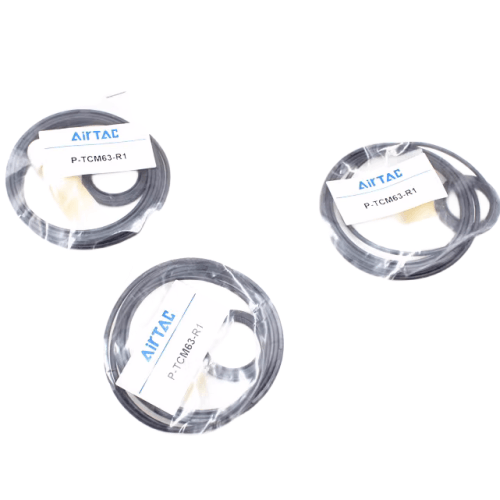

- Package Contents: Piston seals, rod seals, O-rings, wear rings, backup washers, cushion rings
- Material Composition:
- Seals: Polyurethane (PU) & Nitrile Rubber (NBR)
- Backup Rings: Glass-filled PTFE
- Lubrication: Pre-lubricated with silicone-free grease
- Temperature Range: -30℃ to 100℃ (continuous operation)
- Pressure Rating: 0.05-1.2 MPa
- Chemical Resistance: Compatible with mineral oils, water glycol, and most industrial lubricants
- Weight: 285g ±5g (including packaging)
- Package Dimensions: 180mm(L) × 95mm(W) × 25mm(H)
- Shelf Life: 5 years in original packaging (store in cool, dry environment)
- Certifications: ISO 9001, RoHS compliant
Complete overhaul kit for MAL32 series cylinders, engineered for precision rebuilds of 32mm bore pneumatic actuators. Features wear-resistant sealing components with dual-material construction for both dynamic and static applications. Includes specialized anti-extrusion rings to prevent seal deformation under high cycle rates.
- Preventive maintenance in automated assembly lines
- Rehabilitation of leaky cylinders in packaging machinery
- Rebuilding actuators in CNC tool changers
- Overhauling material handling equipment cylinders
- Restoring precision in semiconductor manufacturing actuators
- Disassemble cylinder using manufacturer-approved tools
- Clean all metal components with non-abrasive solvent
- Inspect cylinder bore for scoring (max. 5μm Ra surface roughness required)
- Install new seals using protective sleeves during rod insertion
- Apply included lubricant to all sliding surfaces
Critical Note:
Always replace complete seal set - mixing old and new seals voids warranty.
Test at 0.3 MPa for 30 minutes before full pressure operation.
