Airtac P-MDD Repair Kit P-MDD16-R1
$3.48
Regular price
$10.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-MDD16-R1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

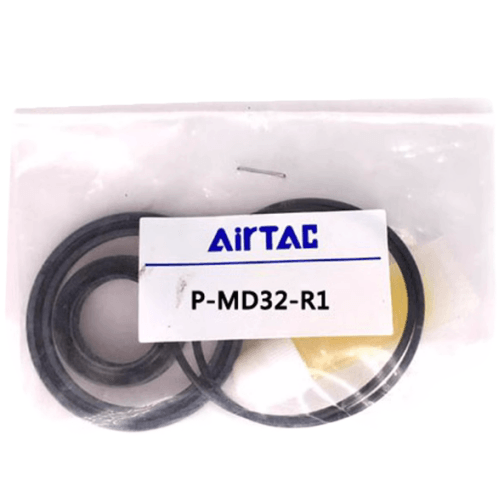

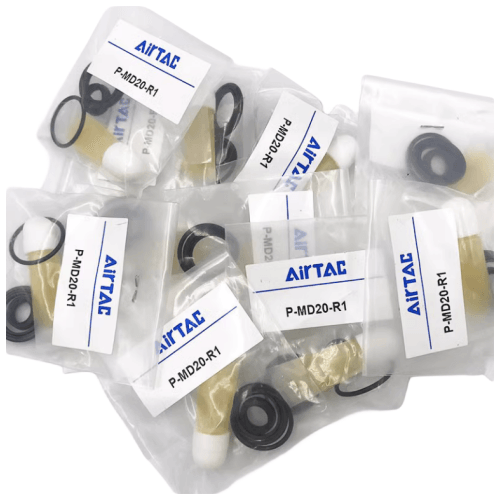

Product Name: AirTAC P-MDD Series Pneumatic Cylinder Seal Ring Repair Kit
Description:
This professional-grade repair kit is specifically designed for the maintenance and overhaul of AirTAC P-MDD series pneumatic cylinders. It contains precision-engineered sealing components including rod seals, piston seals, wipers, and O-rings manufactured from high-performance materials (NBR/PU) to ensure optimal leak resistance and extended service life. The kit complies with original equipment specifications, enabling efficient restoration of cylinder functionality while minimizing downtime in industrial automation systems. Compatible with ISO/VDMA standard pneumatic cylinder configurations, it serves as an essential solution for preventive maintenance or post-failure repair scenarios in material handling, packaging machinery, and automated production line applications.
Maintenance protocol:
Always perform barrel polishing before installation. Use pneumatic-grade
grease (ISO VG 32 equivalent). Torque end caps to 2.5-3.0 N·m using
crisscross pattern. Conduct 10 test cycles before returning to service.
AirTAC P-MDD16-R1 Repair Kit Technical Details
- Model: P-MDD16-R1
- Compatible Cylinder Series: MDD16 (16mm bore size)
- Kit Contents: Piston seals, rod seals, wear rings, O-rings, backup washers, dust seals
- Seal Material: NBR rubber (standard) / Optional Polyurethane (PU)
- Temperature Range: -20℃ to 80℃ (NBR) / -10℃ to 60℃ (PU)
- Pressure Rating: 0.05-1.0 MPa
- Weight: 120g ±5% (unpacked components)
- Package Dimensions: 150mm(L) × 80mm(W) × 25mm(H)
- Storage Humidity: ≤80% RH (non-condensing)
- Shelf Life: 5 years in original sealed packaging
- Compliance: RoHS 2011/65/EU
Complete maintenance solution for MDD series compact cylinders, containing all critical wear components for pneumatic cylinder overhaul. Features precision-molded seals with anti-extrusion design, optimized for high-cycle applications. Includes laser-etched installation diagram card.
Typical Service Scenarios:
- Preventive maintenance in automated assembly lines
- Restoring cylinder performance after 500,000+ cycles
- Seal replacement for pneumatic leakage issues
- Retrofitting legacy MDD cylinders (verify generation compatibility)
- Contamination damage recovery (requires full bore cleaning)
Maintenance protocol:
Always perform barrel polishing before installation. Use pneumatic-grade
grease (ISO VG 32 equivalent). Torque end caps to 2.5-3.0 N·m using
crisscross pattern. Conduct 10 test cycles before returning to service.
| Property | Property Value |
|---|---|
| sku | P-MDD16-R1 |
| Bore Diameter | 16mm |
