Airtac P-SDA Repair Kit P-SDA32-R2
AirTAC P-SDA32-R2 Cylinder Repair Kit Technical Details
- Model: P-SDA32-R2
- Compatible series: SDA/SDB/SDC 32mm bore cylinders
- Seal materials: NBR (nitrile) & PTFE composite
- Temperature range: -20℃ to 100℃ (continuous operation)
- Pressure rating: 0.05-1.2 MPa (7-174 psi)
- Weight: 0.35kg ±5% (including packaging)
- Dimensions: 120mm(L) × 85mm(W) × 25mm(H)

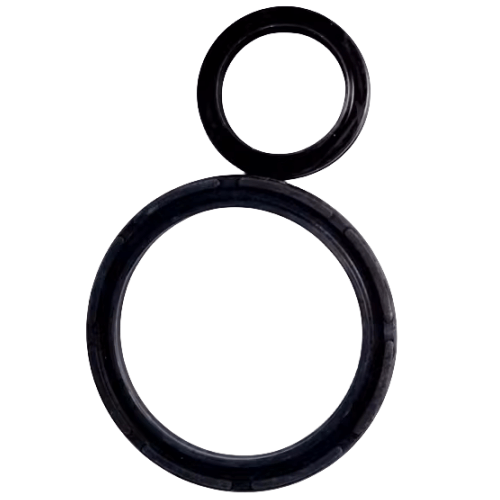

- Components included:
- Piston seals (2pcs) - HNBR/Urethane hybrid
- Rod seals (1pc) - Double-lip PTFE
- Wiper ring (1pc) - Polyurethane
- O-rings (4pcs) - NBR (3×1.5mm, 5×2mm)
- Cushion seals (2pcs) - Oil-resistant rubber
- Anti-extrusion rings (2 sets) - Glass-filled POM
- Storage conditions: 40% RH max, 25℃ dry environment
- Shelf life: 5 years in original vacuum packaging
Comprehensive maintenance solution for 32mm bore pneumatic cylinders, featuring wear-compensating seal designs. The HNBR/PTFE hybrid construction ensures 500,000+ cycles at 0.8MPa. Includes all critical wear components except cylinder tube/piston rod. Compatible with ISO 15552 mounting standards.
- Full overhaul: Replace entire kit components simultaneously
- Partial maintenance: Use O-rings/cushion seals for spot repairs
- Lubrication requirement: Apply ISO VG32 hydraulic oil during assembly
- Break-in period: 50-100 low-pressure cycles after installation
- Food processing cylinder rebuilds (NSF-certified materials)
- Automotive welding fixture maintenance cycles
- Plastic injection molding machine ram repairs
- High-cycle packaging line actuator servicing
Critical step:
Degrease all metal components with alcohol-based cleaner before installation.
Avoid silicone-based lubricants to prevent seal swelling.
