Airtac P-SDA Repair Kit P-SDA50-R1
AirTAC P-SDA50-R1 Repair Kit Technical Details
- Model: P-SDA50-R1
- Compatibility: Designed for SDA series 50mm bore cylinders

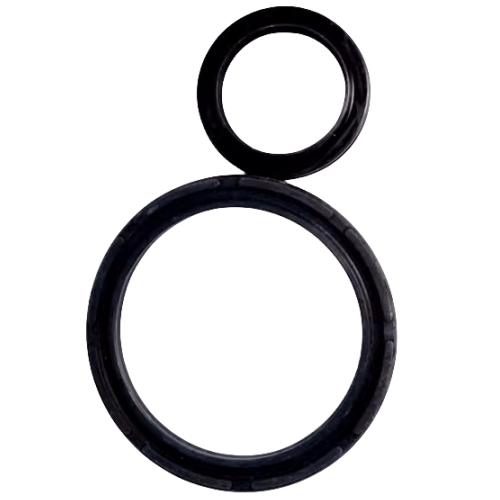

- Package Contents: Piston seals, rod seals, wipers, cushion rings, O-rings, backup rings
- Material Composition:
- Seals: Polyurethane (PU) & Nitrile Rubber (NBR)
- Backup Rings: Glass-filled PTFE
- Wipers: Polyester elastomer
- Temperature Tolerance: -30℃ to 100℃ (continuous operation)
- Pressure Rating: Matches cylinder specs (0.05-1.2 MPa)
- Chemical Resistance: Resists hydraulic oils (ISO VG32-68), weak acids, and alkalis
- Weight: 320g ±5% (including packaging)
- Dimensions: 150mm(L) × 80mm(W) × 30mm(H) (vacuum-sealed blister pack)
- Storage Conditions: Dry environment below 40℃, 5-year shelf life
- Certification: ISO 9001, RoHS compliant
Comprehensive maintenance solution for SDA50 pneumatic cylinders, containing all wear components for full seal replacement. Precision-engineered to restore factory-grade performance with upgraded abrasion-resistant materials. Includes anti-extrusion rings for high side-load applications.
- Recommended replacement cycle: 5 million cycles or 2 years (whichever comes first)
- Requires cylinder disassembly tools: C-clip pliers, soft-jaw vise, non-metallic drift
- Surface prep: Clean cylinder bore with lint-free cloth and isopropyl alcohol
- Lubrication: Apply pneumatic-grade grease (ISO VG15-32) during assembly
- Rod seal leakage (external drips)
- Piston drift under load
- Reduced cushioning performance
- Contamination ingress through wiper
Critical Note:
Replace all seals simultaneously - partial replacement voids warranty.
Torque end caps to 18-22 N·m using crisscross pattern. Pressure test at 1.5x
operating pressure before returning to service.
| Property | Property Value |
|---|---|
| sku | P-SDA50-R1 |
