Airtac P-SDA Repair Kit P-SDA50-R2
AirTAC P-SDA50-R2 Cylinder Repair Kit Technical Details
- Model: P-SDA50-R2
- Compatible series: SDA/SDAP/SDAU/SDAF 50mm bore cylinders
- Component count: 21 pcs (including seals, wear bands, O-rings)
- Seal material: Nitrile rubber (NBR) + Polyurethane (PU) composite
- Temperature range: -20℃ to 80℃ (continuous operation)
- Max pressure rating: 1.0 MPa
- Storage temperature: -30℃ to 90℃ (in original packaging)
- Weight: 185g ±5g
- Dimensions: 105mm(L) × 55mm(W) × 28mm(H)

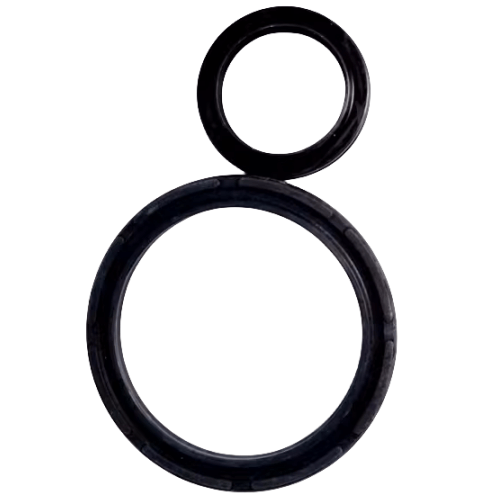

- Kit contents: Piston seals (x2), rod seals (x2), buffer seals (x2), O-rings (x6), backup rings (x4), wear bands (x4), grease sachet (3g)
- Shelf life: 5 years (unopened)
Complete maintenance solution for 50mm bore SDA series cylinders, featuring wear-resistant composite seals and precision-molded components. Includes factory-grade lubricant and anti-extrusion rings for high-pressure applications. Kit components are batch-tested for dimensional accuracy (±0.01mm tolerance).
- Preventive maintenance in automated assembly lines
- Overhaul of packaging machinery actuators
- Rebuilding automotive welding cylinder assemblies
- Restoring precision in CNC machine tool positioning systems
Maintenance protocol:
Replace all seals simultaneously using cleanroom-grade tools.
Apply included grease (P/N: LG-1000) to seal grooves before assembly.
Pressure test at 0.7MPa for 30min post-repair.
| Property | Property Value |
|---|---|
| sku | P-SDA50-R2 |
