Airtac P-SDA Repair Kit P-SDA63-R1
AirTAC P-SDA63-R1 Repair Kit Technical Details
- Model: P-SDA63-R1
- Compatible Series: SDA63 standard cylinder models

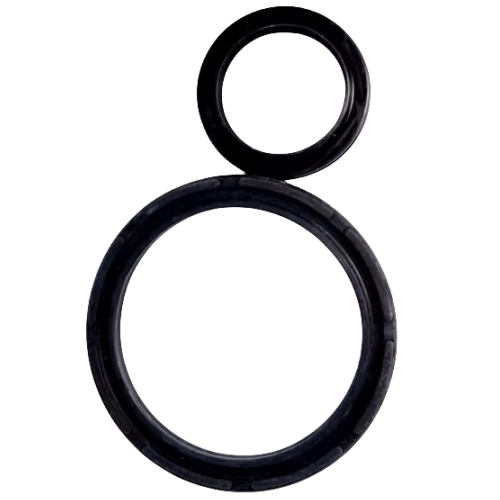

- Package Contents: Piston seals, rod seals, wear rings, O-rings, cushion rings
- Material Composition:
- Seals: NBR (Nitrile) / PU (Polyurethane) options
- Backup Rings: Glass-filled PTFE
- Springs: Stainless steel SUS304
- Operating Temperature: -20℃ to +80℃
- Pressure Range: 0.05-1.0 MPa
- Lubrication Requirement: Requires ISO VG32 hydraulic oil (not included)
- Storage Conditions: Keep in original packaging at 5-40℃, ≤70% RH
- Weight: 220g ±5g
- Dimensions: 180mm(L) × 95mm(W) × 35mm(H)
- Certification: RoHS compliant
- Shelf Life: 5 years from manufacture date
Complete maintenance solution for SDA63 series cylinders, containing precision-machined replacement components to restore pneumatic cylinder performance. Features wear-resistant sealing geometry that matches OEM specifications, with optional high-temp variants available (specify -HT suffix).
- Preventive maintenance cycles (recommended every 500,000 cycles)
- Overhauling cylinders showing air leakage or velocity reduction
- Retrofitting legacy systems to current sealing standards
- Field repair kits for automated production line maintenance
Installation protocol:
Disassemble cylinder using M6 hex key, clean all parts with non-residue solvent,
lubricate seals with specified grease (AIRTAC PG-7 recommended),
reassemble with 3-5Nm torque on fasteners. Perform 50 test cycles before load operation.
| Property | Property Value |
|---|---|
| sku | P-SDA63-R1 |
