Airtac P-SDAT Repair Kit P-SDAT100-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:
This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT100-R1 Cylinder Repair Kit Technical Details
- Model: P-SDAT100-R1
- Compatible Series: P-SDAT100 standard type cylinders

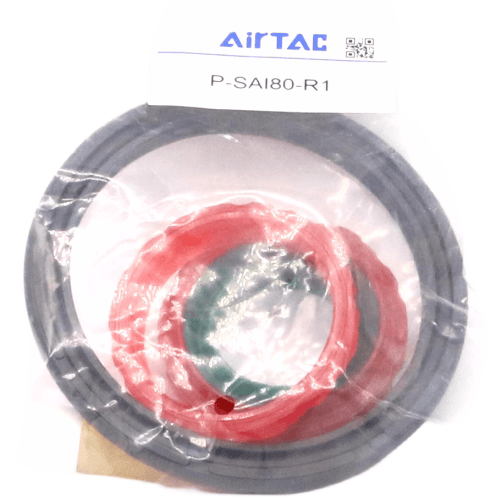

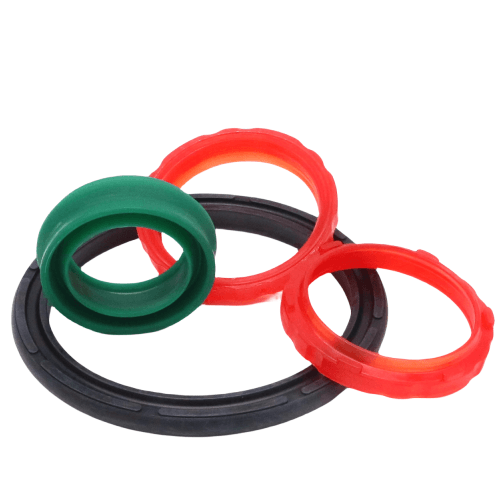

- Component Set Includes:
- Piston seals (NBR) ×2
- Rod seals (PU) ×2
- Wear bands (PTFE) ×2
- O-rings (NBR) ×4 (sizes 8×2.5mm, 15×2.5mm)
- Cushion rings ×2
- Snap rings ×2
- Lubrication grease (3g tube)
- Pressure Range: 0.05-1.0 MPa
- Temperature Range: -20℃ to 80℃
- Material Compatibility: Compatible with ISO VG32 hydraulic oil & standard air tools lubricants
- Weight: 85g ±3g (including packaging)
- Package Dimensions: 120mm(L) × 75mm(W) × 25mm(H)
- Shelf Life: 5 years in original sealed packaging
Complete maintenance solution for P-SDAT series compact cylinders, containing wear-resistant seals precision-engineered to match OEM specifications. The kit restores cylinder compression efficiency and prevents air leakage, extending service life by 2-3 maintenance cycles compared to generic seal replacements.
- Preventive maintenance in high-cycle automation lines (500,000+ cycles)
- Overhaul of pneumatic clamping units in injection molding machines
- Rehabilitation of food packaging equipment cylinders exposed to moisture
- Emergency repair kits for semiconductor manufacturing tools
Installation protocol:
Clean cylinder bore with alcohol wipe before assembly. Apply included grease
to seal grooves. Use snap ring pliers (not included) for secure installation.
Test at 0.3MPa before full pressure operation.
