Airtac P-SDAT Repair Kit P-SDAT20-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:

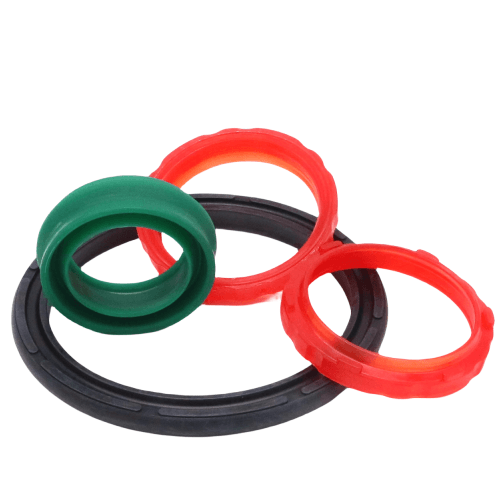

This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT20-R1 Repair Kit Technical Details
- Model: P-SDAT20-R1
- Compatible Series: P-SDAT20 series solenoid valves
- Component Set:
- 4x O-rings (NBR/FKM optional)
- 2x Piston seals
- 1x Return spring (stainless steel SUS304)
- 1x Valve stem assembly
- 2x Gasket sheets (0.5mm thickness)
- 1x Diaphragm seal set
- Temperature Range: -20℃ to 80℃
- Pressure Compatibility: 0.1-0.8 MPa
- Material Standard: RoHS compliant
- Weight: 250g ±5g (complete kit)
- Package Dimensions: 150mm(L) × 80mm(W) × 30mm(H)
- Shelf Life: 5 years in original sealed packaging
Comprehensive maintenance solution for P-SDAT20 series valves, containing wear-resistant replacement parts engineered to OEM specifications. Features chemical-resistant sealing components suitable for pneumatic systems using ISO 8573-1:2010 Class 3 compressed air. Includes anti-static packaging for component protection.
- Preventive maintenance cycles (recommended every 500,000 cycles)
- Emergency repair of leaking/damaged valves in production lines
- Retrofitting older valves to meet updated pneumatic standards
- Food processing machinery requiring frequent sanitation cycles
Installation guidance:
Use cleanroom-grade gloves during assembly. Lubricate O-rings with
silicone grease (P/N: AT-G30) before installation. Torque valve body screws
to 0.8-1.2 N·m using crisscross pattern.
| Property | Property Value |
|---|---|
| sku | P-SDAT20-R1 |
