Airtac P-SDAT Repair Kit P-SDAT25-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:
This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT25-R1 Cylinder Repair Kit Technical Details
- Model: P-SDAT25-R1
- Compatible Series: SDAT25 standard cylinders

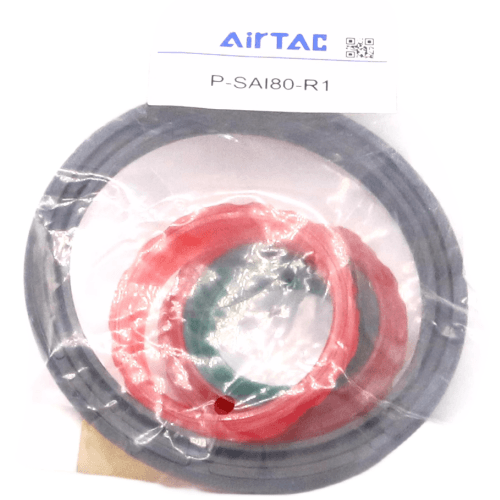

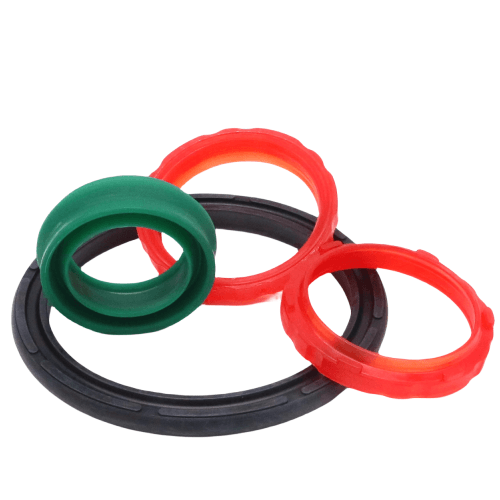

- Package Contents: Piston seals, rod seals, wipers, O-rings, backup rings
- Material Composition:
- Seals: NBR (Nitrile Rubber)
- Backup Rings: POM (Polyoxymethylene)
- Wipers: Polyurethane
- Temperature Range: -20℃ to 80℃
- Pressure Rating: 0.05–1.0 MPa
- Oil Resistance: Compatible with ISO VG32 hydraulic oil
- Package Weight: 280g ±5g
- Dimensions: 120mm(L) × 85mm(W) × 25mm(H)
- Storage Life: 5 years in original packaging
- Certification: RoHS compliant
Complete maintenance solution for SDAT25 pneumatic cylinders, containing wear-resistant replacement components engineered to restore original performance. Features precision-molded seals with 0.01mm tolerance control for leak-free operation. Kit includes anti-extrusion rings to prevent seal deformation under high cycling conditions.
- Preventive maintenance in automated assembly lines
- Overhauling cylinders with >500,000 cycles
- Food processing equipment requiring FDA-compliant seals
- High humidity environments prone to seal degradation
Maintenance protocol:
Replace entire seal set simultaneously using clean tools.
Apply silicone-free grease (ISO VG15-32) during assembly.
Test at 0.5MPa before full pressure operation.
