Airtac P-SDAT Repair Kit P-SDAT32-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:

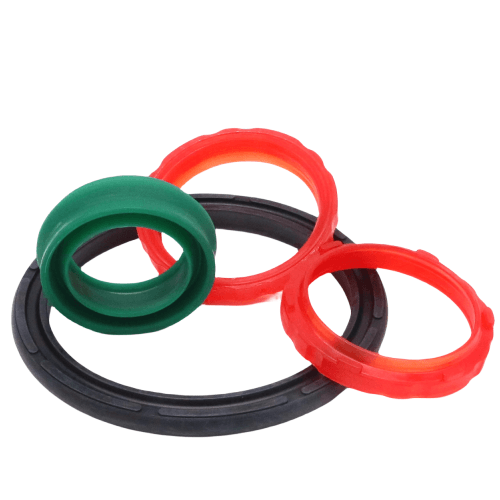

This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT32-R1 Cylinder Repair Kit Specifications
- Model Compatibility: Designed for ADA32 series standard cylinders (32mm bore)
- Component Count: 23 precision parts including seals & wear bands
- Seal Material: NBR (Nitrile) rubber with glass fiber-reinforced piston
- Rod Seal Type: Double-acting lip seal with anti-extrusion ring
- Temperature Range: -20℃ to +80℃ continuous operation
- Pressure Rating: 0.05-1.2 MPa (optimized for 0.1-0.8 MPa)
- Lubrication: Pre-lubricated with MIL-G-7711A grease
- Weight: 0.25kg (including packaging)
- Dimensions: 100mm(L) × 80mm(W) × 20mm(H)
- Storage Life: 5 years in original sealed packaging
- Certification: RoHS compliant, ISO 15552 compatible
Comprehensive maintenance solution containing critical replacement components for ADA32 pneumatic cylinders. Features wear-resistant composite materials engineered for 500,000+ cycles. Includes specialized cushion seals and precision-ground backup rings to prevent blow-out in high-pulse applications.
- Factory automation line cylinder overhauls
- Packaging machinery piston seal replacement
- Automotive assembly clamp cylinder maintenance
- Material handling system rod seal rehabilitation
- Food processing actuator refurbishment (dry applications)
Maintenance protocol:
Always clean cylinder bore with IPA before installation.
Use pneumatic tool oil (ISO VG32) on rod seals during assembly.
Replace entire kit simultaneously for optimal sealing performance.
