Airtac P-SDAT Repair Kit P-SDAT40-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:
This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT40-R1 Cylinder Repair Kit Technical Details
- Model: P-SDAT40-R1
- Compatible Series: SDAT40/SDA40 cylinder series

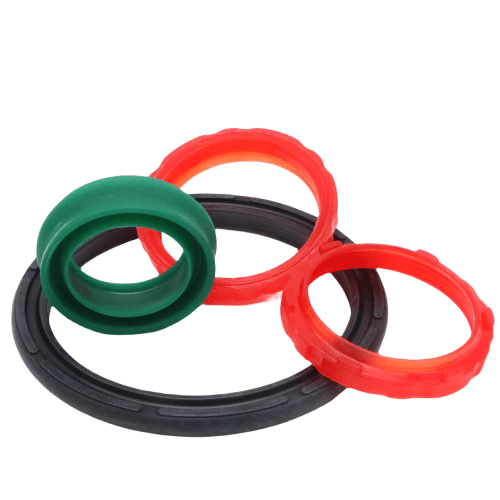

- Components Included:
- Piston seals (NBR + PTFE composite)
- Rod seals (Polyurethane U-cup)
- Wear bands (Glass-filled PTFE)
- O-rings (NBR 70 Shore)
- Cushion rings & buffer seals
- Thread locker (Medium strength)
- Material Standards: ISO 9001 & RoHS compliant
- Temperature Range: -20℃ to 100℃ (continuous operation)
- Pressure Rating: Matches original cylinder specs (0-1.0 MPa)
- Storage Conditions: 15-25℃ dry environment (5-year shelf life)
- Weight: 0.82 kg (complete kit with packaging)
- Dimensions: 205mm(L) × 105mm(W) × 48mm(H)
Comprehensive maintenance solution for SDAT40 series cylinders, containing precision-engineered replacement parts to restore factory-level performance. Features wear-resistant materials with anti-extrusion design, optimized for high-cycle applications. Kit includes alignment tools and installation guide stickers.
- Preventive maintenance in automotive welding fixtures
- Overhaul of packaging machinery linear actuators
- Rehabilitation of aging CNC machine tool cylinders
- Field repair of material handling systems
Maintenance protocol:
Replace all seals simultaneously using included cleaning swabs.
Apply included lubricant (Molykote EM-30L) to rod seals before installation.
Torque end caps to 12-15N·m using crisscross pattern.
