Airtac P-SDAT Repair Kit P-SDAT50-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:
This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT50-R1 Repair Kit Technical Details
- Compatible model series: P-SDAT50 cylinder series

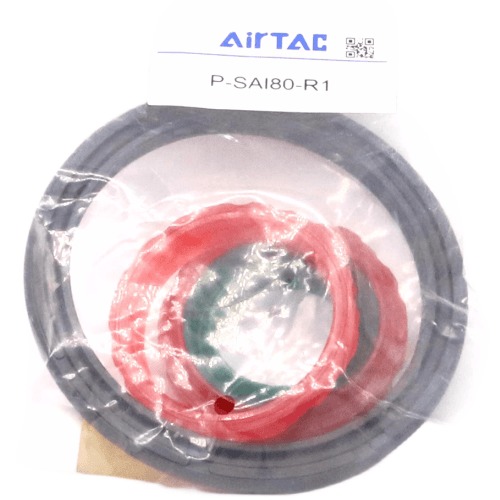

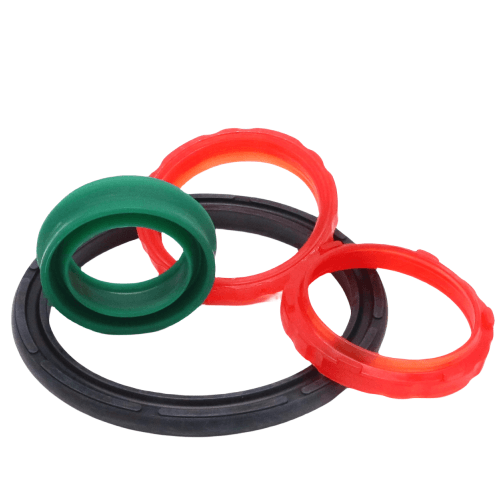

- Kit contents: Piston seals, rod seals, wear rings, O-rings, backup washers
- Seal material: NBR (standard) / PU (optional for chemical resistance)
- Temperature range: -20℃ to 80℃ (NBR) / -10℃ to 60℃ (PU)
- Pressure rating: 0.05–1.0 MPa
- Chemical compatibility: Resists hydraulic oils, water glycol, and mild acids (PU version enhances petroleum resistance)
- Weight: 320g ±5% (complete kit with packaging)
- Package dimensions: 180mm(L) × 120mm(W) × 35mm(H)
- Storage conditions: Keep in original packaging at 15-25℃, 40-60% RH
- Shelf life: 5 years from manufacture date (unopened)
Comprehensive maintenance solution for P-SDAT series compact cylinders, containing precision-molded replacement seals that maintain original equipment tolerances (±0.02mm). The kit's layered packaging system separates components by installation sequence, featuring anti-static foam inserts to prevent rubber degradation.
- Preventive maintenance during cylinder overhaul cycles (recommended every 500,000 cycles)
- Emergency repair of pneumatic actuator leakage in conveyor systems
- Rehabilitation of misaligned cylinders in automated assembly lines
- Retrofitting legacy units in semiconductor handling equipment
Installation protocol:
Clean cylinder bore with IPA (isopropyl alcohol) before assembly.
Apply silicone-free grease (viscosity 100-150 cSt) to rod seals.
Torque end caps to 12-15 N·m using crisscross pattern.
Perform 50 test cycles at 0.3 MPa before returning to service.
| Property | Property Value |
|---|---|
| sku | P-SDAT50-R1 |
