Airtac P-SDAT Repair Kit P-SDAT63-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:
This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT63-R1 Repair Kit Technical Details
- Model: P-SDAT63-R1
- Compatibility: SDAT63 series standard cylinders

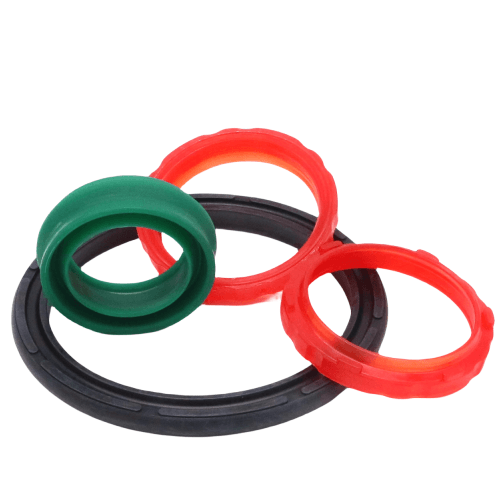

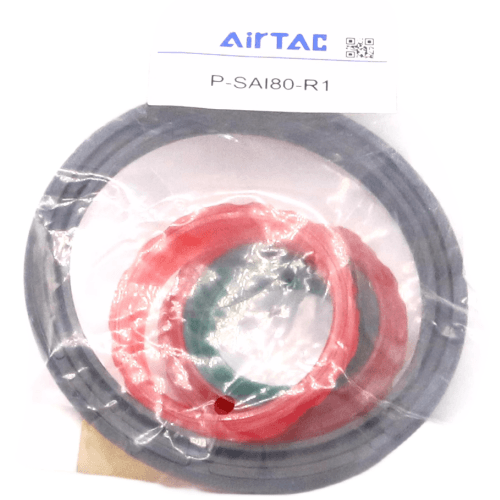

- Package contents:
- Piston seals (PU) ×2
- Rod seals (NBR) ×2
- Wiper seals ×2
- O-rings (NBR) ×4
- Cushion rings ×2
- Backup rings ×4
- Material hardness: 70±5 Shore A (seals)
- Temperature range: -20℃ to 100℃ (continuous use)
- Pressure rating: 0.05–1.2 MPa
- Chemical resistance: Compatible with ISO VG32 hydraulic oil & most industrial lubricants
- Storage life: 8 years in original packaging
- Weight: 320g ±5%
- Package dimensions: 180mm(L) × 95mm(W) × 35mm(H)
Complete maintenance solution for SDAT63 pneumatic cylinders, containing all wear-prone components for full overhaul. Features high-wear resistance polyurethane (PU) piston seals and temperature-stable NBR rubber elements. Kit includes anti-extrusion rings for high-pressure applications.
- Cylinder rod leakage repair
- Preventive maintenance after 1 million cycles
- Restoration of slow/sticking cylinder movement
- Post-contamination events (e.g., abrasive particle ingress)
- Pressure drop across cylinder exceeding 15% specification
Maintenance protocol:
Replace all seals simultaneously using clean tools. Lubricate components with
ISO VG32 oil before assembly. Torque mounting bolts to 12-14 N·m. Perform
three full-stroke test cycles before returning to service.
| Property | Property Value |
|---|---|
| sku | P-SDAT63-R1 |
